深入浅出angr–angrctf(二)

08_angr_constraints

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int i; // [esp+Ch] [ebp-Ch]

  qmemcpy(&password, "OSIWHBXIFOQVSBZB", 16);
  memset(&buffer, 0, 0x11u);
  printf("Enter the password: ");
  __isoc99_scanf("%16s", &buffer);
  for ( i = 0; i <= 15; ++i )
    *(_BYTE *)(i + 134520896) = complex_function(*(char *)(i + 134520896), 15 - i);
  if ( check_equals_OSIWHBXIFOQVSBZB(&buffer, 16) )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

这里比较调用了check_equals_OSIWHBXIFOQVSBZB()函数，代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
_BOOL4 __cdecl check_equals_OSIWHBXIFOQVSBZB(int a1, unsigned int a2)
{
  int v3; // [esp+8h] [ebp-8h]
  unsigned int i; // [esp+Ch] [ebp-4h]

  v3 = 0;
  for ( i = 0; a2 > i; ++i )
  {
    if ( *(_BYTE *)(i + a1) == *(_BYTE *)(i + 134520880) )
      ++v3;
  }
  return v3 == a2;
}

上述代码就是将buffer的每一个字节与password的每一个字节作比较，人工很容易就能反推出原来的buffer，但是angr不能，只能一个一个去遍历，总共会有2^16=65536种分支，造成路径爆炸，这需要太长时间才能遍历得到结果。

这个挑战的方法是在check_equals_OSIWHBXIFOQVSBZB()之前遍历满足当前的buffer，手动添加约束条件来替代一个一个字节导致的分支，脚本如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
import sys
import angr
import claripy

def main(argv):
    project = angr.Project("./08_angr_constraints")
    start_addr = 0x0804863c
    init_state = project.factory.blank_state(addr=start_addr)

    password = claripy.BVS("password",16*8)
    init_state.memory.store(0x0804a040,password)

    simulation = project.factory.simgr(init_state)
    #符号输入化

    #当寻找到check_equals()时，停止，自行进行约束判断
    check_addr = 0x08048683
    simulation.explore(find=check_addr)

    #给函数进行参数初始化
    if simulation.found:
        solution_state = simulation.found[0]
        constrained_parameter_address = 0x804a040
        constrained_parameter_size_bytes = 16
        constrained_parameter_bitvector = solution_state.memory.load(
            constrained_parameter_address,
            constrained_parameter_size_bytes
        )
        constrained_parameter_desired_value = 'OSIWHBXIFOQVSBZB'.encode()
        solution_state.add_constraints(constrained_parameter_bitvector == constrained_parameter_desired_value)
        solution = solution_state.solver.eval(password,cast_to=bytes).decode()
        print(solution)
    else:
        raise Exception("Could not find the solution!")




if __name__=="__main__":
    main(sys.argv)

得到原来的值为ZEVKWROAYILRPZYB

当然这里也可以使用Veritesting快速遍历得到

09_angr_hooks

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
int __cdecl main(int argc, const char **argv, const char **envp)
{
  _BOOL4 v3; // eax
  int i; // [esp+8h] [ebp-10h]
  int j; // [esp+Ch] [ebp-Ch]

  qmemcpy(password, "OSIWHBXIFOQVSBZB", 16);
  memset(buffer, 0, 0x11u);
  printf("Enter the password: ");
  __isoc99_scanf("%16s", buffer);
  for ( i = 0; i <= 15; ++i )
    *(_BYTE *)(i + 134520900) = complex_function(*(char *)(i + 0x804A044), 18 - i);
  equals = check_equals_OSIWHBXIFOQVSBZB((int)buffer, 0x10u);
  for ( j = 0; j <= 15; ++j )
    *(_BYTE *)(j + 134520884) = complex_function(*(char *)(j + 0x804A034), j + 9);
  __isoc99_scanf("%16s", buffer);
  v3 = equals && !strncmp(buffer, password, 0x10u);
  equals = v3;
  if ( v3 )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

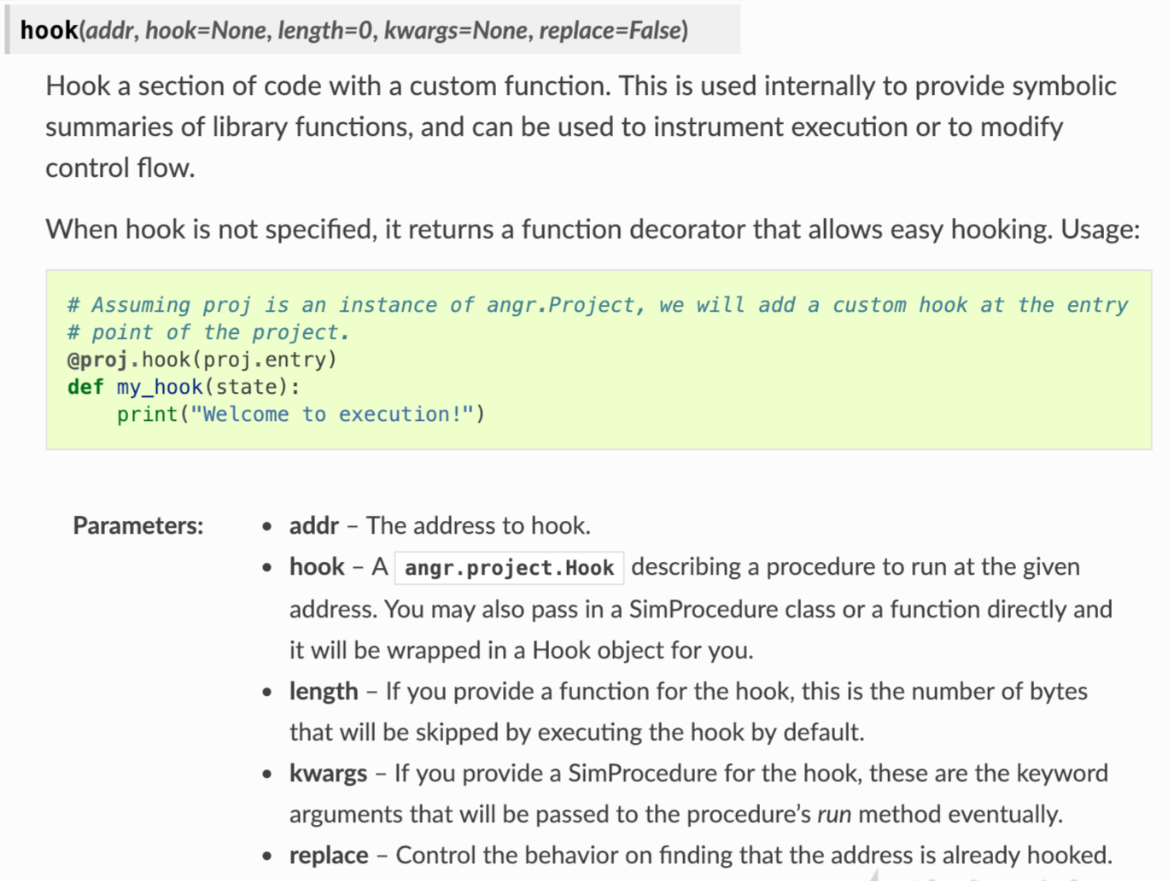

和上面一样check_equals_OSIWHBXIFOQVSBZB()造成路径爆炸，所以执行到该函数需要停下，然后进行hook覆写check_equals()添加约束条件来得到其返回值，然后继续进行符号执行。我们来看看hook在官方文档的介绍

hook代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
check_equals_called_address = 0x80486ca
instruction_to_skip_length = 5
  @project.hook(check_equals_called_address,length=instruction_to_skip_length)
  def skip_check_equals_(state):
    user_input_buffer_address = 0x804a044 # :integer, probably hexadecimal
    user_input_buffer_length = 16

    user_input_string = state.memory.load(
      user_input_buffer_address,
      user_input_buffer_length
    )


    check_against_string = 'OSIWHBXIFOQVSBZB'.encode() # :string

    state.regs.eax = claripy.If(
      user_input_string == check_against_string,
      claripy.BVV(1, 32),
      claripy.BVV(0, 32)
    )

这里不能使用08那种做法的原因是由于需要进行多次输入，在找到约束条件之后无法再次进行符号执行。

整体代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
import angr
import claripy
import sys

def main(argv):
    pro = angr.Project("./09_angr_hooks")
    init_state = pro.factory.entry_state()


    check_equal_addr = 0x080486ca
    instruction_skip_length = 5
    @pro.hook(check_equal_addr,length=instruction_skip_length)
    def skip_check_equals_(state):
        input_buffer_addr = 0x0804a044
        buffer_length = 16
        input_buffer_string = state.memory.load(input_buffer_addr,buffer_length)
        check_string = 'OSIWHBXIFOQVSBZB'.encode()
        state.regs.eax = claripy.If(input_buffer_string==check_string,claripy.BVV(1,32),claripy.BVV(0,32))

    simulation = pro.factory.simgr(init_state)

    def is_successful(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Good Job.'.encode() in stdout_output

    def should_abort(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Try again.'.encode() in stdout_output

    simulation.explore(find=is_successful, avoid=should_abort)

    if simulation.found:
        solution_state = simulation.found[0]
        solution = solution_state.posix.dumps(sys.stdin.fileno()).decode()
        print(solution)
    else:
        raise Exception('Could not find the solution')

if __name__=="__main__":
    main(sys.argv)

得到两次的输入为QREPXOHPJPOQKQLKNOBMULEMGMLNHNIH

10_angr_simprocedures

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int i; // [esp+20h] [ebp-28h]
  char s[17]; // [esp+2Bh] [ebp-1Dh] BYREF
  unsigned int v6; // [esp+3Ch] [ebp-Ch]

  v6 = __readgsdword(0x14u);
  memcpy(&password, "OSIWHBXIFOQVSBZB", 0x10u);
  memset(s, 0, sizeof(s));
  printf("Enter the password: ");
  __isoc99_scanf("%16s", s);
  for ( i = 0; i <= 15; ++i )
    s[i] = complex_function(s[i], 18 - i);
  if ( check_equals_OSIWHBXIFOQVSBZB(s, 16) )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

这个看起来和08是相同的，但是这里s是位于堆栈里面的，08是位于bss段的。这里使用SimProcedure创建一个类去hook不同的类，与上一个相同格式进行hhok，只是针对hook多个类时方便进行python编程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
import angr
import claripy
import sys

def main(argv):
    pro = angr.Project("./10_angr_simprocedures")
    init_state = pro.factory.entry_state()

    class ReplacementCheckEquals(angr.SimProcedure):
        def run(self, check_addr, length):
            input_buffer_addr = check_addr
            input_buffer_length = length

            input_buffer_string = self.state.memory.load(input_buffer_addr,input_buffer_length)
            check_against_string = 'OSIWHBXIFOQVSBZB'.encode()
            return claripy.If(input_buffer_string==check_against_string,claripy.BVV(1,32),claripy.BVV(0,32))

    check_equals_symbol = 'check_equals_OSIWHBXIFOQVSBZB'  # :string
    pro.hook_symbol(check_equals_symbol, ReplacementCheckEquals())


    simulation = pro.factory.simgr(init_state)

    def is_successful(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Good Job.'.encode() in stdout_output

    def should_abort(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Try again.'.encode() in stdout_output

    simulation.explore(find=is_successful, avoid=should_abort)

    if simulation.found:
        solution_state = simulation.found[0]
        solution = solution_state.posix.dumps(sys.stdin.fileno()).decode()
        print(solution)
    else:
        raise Exception('Could not find the solution')

if __name__=="__main__":
    main(sys.argv)

得到MTMDRONBBNSAAMNS

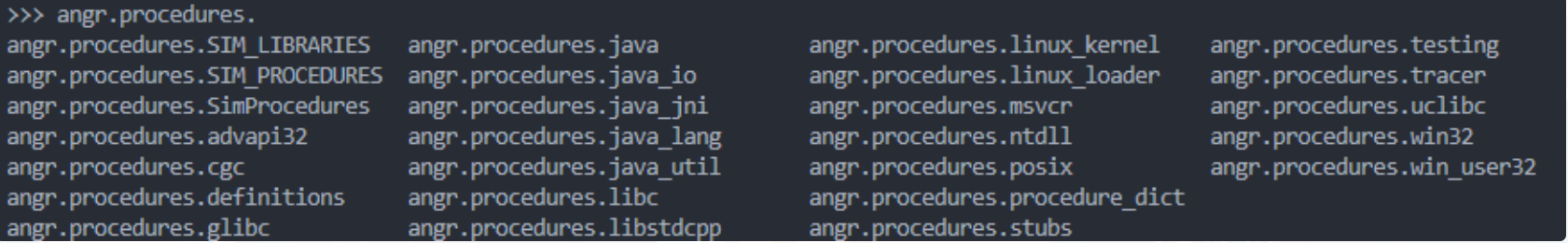

SimProcedure旨在完全替换所挂钩的任何函数，最初用例是替换库函数

我看代码的时候有个疑问就是ReplacementCheckEquals()中并没有指定明确的参数，具体是这么操作的呢？

SimProcedure运行时将通过调用约定自动从程序状态中提取这些参数(被hook函数的参数)，然后调用run函数，当在run函数中获得的返回也同样被置于被hook函数的返回值，这就是hook的操作。

11_angr_sim_scanf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int i; // [esp+20h] [ebp-28h]
  char s[20]; // [esp+28h] [ebp-20h] BYREF
  unsigned int v7; // [esp+3Ch] [ebp-Ch]

  v7 = __readgsdword(0x14u);
  memset(s, 0, sizeof(s));
  qmemcpy(s, "LOGMHXHI", 8);
  for ( i = 0; i <= 7; ++i )
    s[i] = complex_function(s[i], i);
  printf("Enter the password: ");
  __isoc99_scanf("%u %u", buffer0, buffer1);
  if ( !strncmp(buffer0, s, 4u) && !strncmp(buffer1, &s[4], 4u) )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

这道题是对_isoc99_scanf()使用SimProcedure进行hook

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
import angr
import sys
import claripy

def main(argv):
    project = angr.Project("./11_angr_sim_scanf")
    initial_state = project.factory.entry_state(
        add_options={angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                     angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
    )
    class Replacementscanf(angr.SimProcedure):
        def run(self,string,password0_addr,password1_addr):
            password0 = claripy.BVS('password0',32)
            password1 = claripy.BVS('password1',32)

            self.state.memory.store(password0_addr, password0, endness=project.arch.memory_endness)
            self.state.memory.store(password1_addr, password1, endness=project.arch.memory_endness)

            self.state.globals['solution0'] = password0
            self.state.globals['solution1'] = password1

    replace_function = "__isoc99_scanf"
    project.hook_symbol(replace_function,Replacementscanf())

    simulation = project.factory.simgr(initial_state)

    def is_successful(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Good Job.'.encode() in stdout_output

    def should_abort(state):
        stdout_output = state.posix.dumps(sys.stdout.fileno())
        return 'Try again.'.encode() in stdout_output

    simulation.explore(find=is_successful, avoid=should_abort)

    if simulation.found:
        solution_state = simulation.found[0]

        # Grab whatever you set aside in the globals dict.
        stored_solutions0 = solution_state.globals['solution0']
        stored_solutions1 = solution_state.globals['solution1']
        solution = f'{solution_state.solver.eval(stored_solutions0)} {solution_state.solver.eval(stored_solutions1)}'
        print(solution)
    else:
        raise Exception('Could not find the solution')


if __name__ == '__main__':
    main(sys.argv)

得到结果为1447907916 1146768724

12_angr_veritesting

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int v3; // ebx
  int v5; // [esp-14h] [ebp-60h]
  int v6; // [esp-10h] [ebp-5Ch]
  int v7; // [esp-Ch] [ebp-58h]
  int v8; // [esp-8h] [ebp-54h]
  int v9; // [esp-4h] [ebp-50h]
  const char **v10; // [esp+0h] [ebp-4Ch]
  int v11; // [esp+4h] [ebp-48h]
  int v12; // [esp+8h] [ebp-44h]
  int v13; // [esp+Ch] [ebp-40h]
  int v14; // [esp+10h] [ebp-3Ch]
  int v15; // [esp+10h] [ebp-3Ch]
  int v16; // [esp+14h] [ebp-38h]
  int i; // [esp+14h] [ebp-38h]
  int v18; // [esp+18h] [ebp-34h]
  _DWORD v19[9]; // [esp+1Ch] [ebp-30h] BYREF
  unsigned int v20; // [esp+40h] [ebp-Ch]
  int *v21; // [esp+44h] [ebp-8h]

  v21 = &argc;
  v10 = argv;
  v20 = __readgsdword(0x14u);
  memset((char *)v19 + 3, 0, 0x21u);
  printf("Enter the password: ");
  ((void (__stdcall *)(const char *, char *, int, int, int, int, int, const char **, int, int, int, int, int, int, _DWORD))__isoc99_scanf)(
    "%32s",
    (char *)v19 + 3,
    v5,
    v6,
    v7,
    v8,
    v9,
    v10,
    v11,
    v12,
    v13,
    v14,
    v16,
    v18,
    v19[0]);
  v15 = 0;

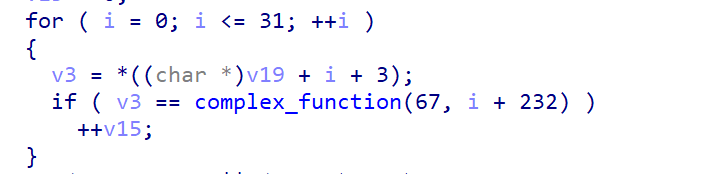

  for ( i = 0; i <= 31; ++i )
  {
    v3 = *((char *)v19 + i + 3);
    if ( v3 == complex_function(67, i + 232) )
      ++v15;
  }
  if ( v15 != 32 || (_BYTE)v20 )
    puts("Try again.");
  else
    puts("Good Job.");
  return 0;
}

根据wiki提示如下需要使用veritesting

1
2
# When you construct a simulation manager, you will want to enable Veritesting:
# project.factory.simgr(initial_state, veritesting=True)

什么是veritesting？

从高层面来说，有两种符号执行，一种是动态符号执行（Dynamic Symbolic Execution，简称DSE），另一种是静态符号执行（Static Symbolic Execution，简称SSE）。动态符号执行会去执行程序然后为每一条路径生成一个表达式。而静态符号执行将程序转换为表达式，每个表达式都表示任意条路径的属性。基于路径的DSE在生成表达式上引入了很多的开销，然而生成的表达式很容易求解。而SSE虽然生成表达式容易，但是表达式难求解。veritesting就是在这二者中做权衡，使得能够在引入低开销的同时，生成较易求解的表达式。

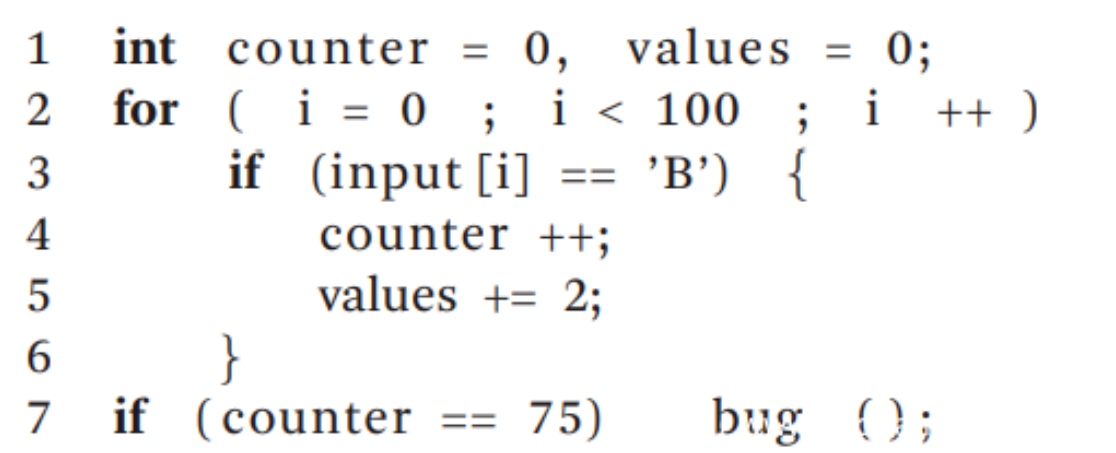

如下面例子，有着2^100条执行路径，如果每条路径都使用DES去分析的话，实现是不太现实的。实际上只需要两个测试样例，一个包含75B的字符串和一个没有B的字符串。

Veritest从DSE开始，一旦遇到一些简单的代码，就切换到SSE的模式。简单的代码指的是不含系统调用，间接跳转或者其他很难精确推断的语句。在SSE模式下，首先动态恢复控制流图，找到SSE容易分析的语句和难以分析的语句。然后SSE算法推断出从易分析的节点到难分析节点路径的影响。最后，Veritesting切换回DSE模式去处理静态不好解决的情况。

由于在上面代码中存在2^32条路径，这里使用Veritest进行遍历

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

import angr
import sys

def main(argv):
  project = angr.Project("./12_angr_veritesting")
  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )
  simulation = project.factory.simgr(initial_state, veritesting=True)


  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return 'Good Job.'.encode() in stdout_output  # :boolean
  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return 'Try again.'.encode() in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]
    print(solution_state.posix.dumps(sys.stdin.fileno()).decode())
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

得到输入为YNCRGVKZODSHWLAPETIXMBQFUJYNCRGV

13_angr_static_library

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
int __cdecl main(int argc, const char **argv, const char **envp)
{
  int i; // [esp+1Ch] [ebp-3Ch]
  int j; // [esp+20h] [ebp-38h]
  char v6[20]; // [esp+24h] [ebp-34h] BYREF
  char v7[20]; // [esp+38h] [ebp-20h] BYREF
  unsigned int v8; // [esp+4Ch] [ebp-Ch]

  v8 = __readgsdword(0x14u);
  for ( i = 0; i <= 19; ++i )
    v7[i] = 0;
  qmemcpy(v7, "ELZXQOOQ", 8);
  printf("Enter the password: ");
  _isoc99_scanf("%8s", v6);
  for ( j = 0; j <= 7; ++j )
    v6[j] = complex_function(v6[j], j);
  if ( j_strcmp_ifunc(v6, v7) )
    puts("Try again.");
  else
    puts("Good Job.");
  return 0;
}

这题和第一题的代码没什么区别，但它是静态编译得来的二进制文件，将所有的库函数都写入二进制文件。angr对于库函数只会分出一条路径，而不关心库函数内部是怎样实现的，库函数内部的分支也不会增加angr路径上的分支数量。

在默认情况下angr会使用SimProcedures里面的符号函数摘要集替换库函数，本质上是在库函数上设置了Hooking，这些hook 函数高效地模仿库函数对状态的影响，就像我们之前在第8题中做的那样。因此angr不进入库函数内部的原因在于，它实际上执行的是hook函数，而hook函数只模仿了库函数对状态的影响，实际内部的操作并没有实现，因此也就不会产生额外分支。

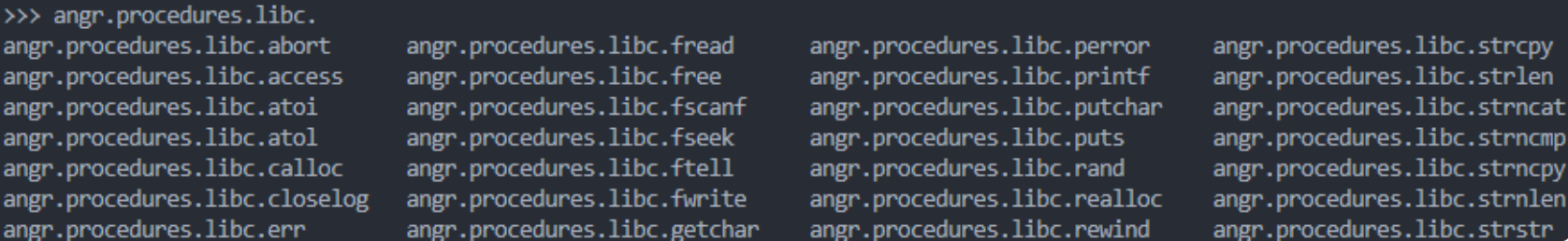

Simprocedures是一个两层结构，第一层表示包名，第二层则是函数名

而此题库函数被静态编译进来了，默认启用的符号函数摘要集作用在动态链接库上，因此此时失效了，在该题中调用的库函数都会进入内部并产生相应的分支，这会大大降低angr的效率。此题的目的在于，手动使用符号函数摘要集替换程序中使用到的库函数

想要获取某个符号函数摘要集中的函数，可以使用下面的代码：

1
angr.SIM_PROCEDURES['libc']['scanf']()

就可以获取libc包中的scanf函数了，它是一个与之前第10题中我们创建的class Hook是同一个类。对于这样的hook函数，可以使用以下两种方式将它hook到目标函数上去：

1
2
3
project.hook(address_of_hooked, angr.SIM_PROCEDURES['libc']['scanf']())

project.hook_symbol('__isoc99_scanf',angr.SIM_PROCEDURES['libc']['scanf']())

一种是传递待hook函数的地址，还有一种是传递函数名。

此外在进入main函数之前，程序会先调用__libc_start_main，它也是库函数，而在创建状态时，如果使用entry_state()，则初始状态就已经经过了__libc_start_main的调用，所以最好也hook掉这个函数，或者使用blank_state手动从main函数开始。

14_angr_shared_library

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
int __cdecl main(int argc, const char **argv, const char **envp)
{
  char s[16]; // [esp+1Ch] [ebp-1Ch] BYREF
  unsigned int v5; // [esp+2Ch] [ebp-Ch]

  v5 = __readgsdword(0x14u);
  memset(s, 0, sizeof(s));
  printf("Enter the password: ");
  __isoc99_scanf("%8s", s);
  if ( validate(s, 8) )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

这题不是静态编译了，main函数的逻辑也和13题一样，但是用于混淆输入和比较的函数validate是通过动态链接库调用进来的，因此直接逆向查看动态链接库获取validate函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
_BOOL4 __cdecl validate(char *s1, int a2)
{
  char v3; // al
  char s2[20]; // [esp+4h] [ebp-24h] BYREF
  int j; // [esp+18h] [ebp-10h]
  int i; // [esp+1Ch] [ebp-Ch]

  if ( a2 <= 7 )
    return 0;
  for ( i = 0; i <= 19; ++i )
    s2[i] = 0;
  qmemcpy(s2, "THHEYHIA", 8);
  for ( j = 0; j <= 7; ++j )
  {
    v3 = complex_function(s1[j], j);
    s1[j] = v3;
  }
  return strcmp(s1, s2) == 0;
}

思路如下：

  • 模拟validate的函数执行，传递一个符号变量参数
  • 使用explorer()在validate函数后探索路径
  • 添加状态约束，使用add_constraints()为状态添加约束项

模拟函数执行有两种方法，一种方法是使用blank_state()设置起始位置，并通过布置栈压栈操作来向函数传递参数，代码如下

1
2
3
4
5
6
init_state = p.factory.blank_state(addr=validate_addr)

init_state.regs.ebp = init_state.regs.esp
init_state.stack_push(8)
init_state.stack_push(password_addr)
init_state.stack_push(0)

还有一种方法是，angr提供了更方便的从函数处开始执行的方式

1
init_state = p.factory.call_state(func_addr, param1, param2)

最后还需要注意的一点是，动态链接库在加载时需要重定位，可以在建立项目时用load_options设定重定位的基址，就像这样：

1
2
3
4
5
p = angr.Project(path_to_binary,
                 auto_load_libs=False,
                 load_options={'main_opts': {
                     'custom_base_addr': base_addr
                 }})

如果不设立基址，通常angr会默认加载到0x400000处，在IDA中看到的各个指令的地址都只是相对地址，需要加上基址才能找到它们.

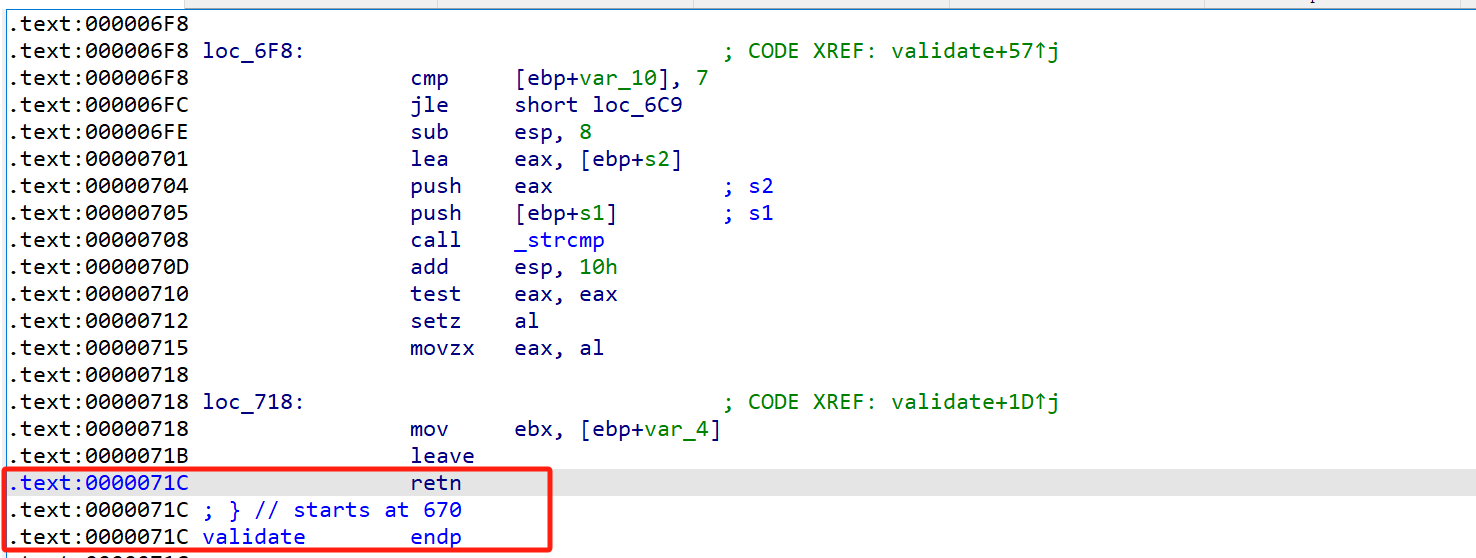

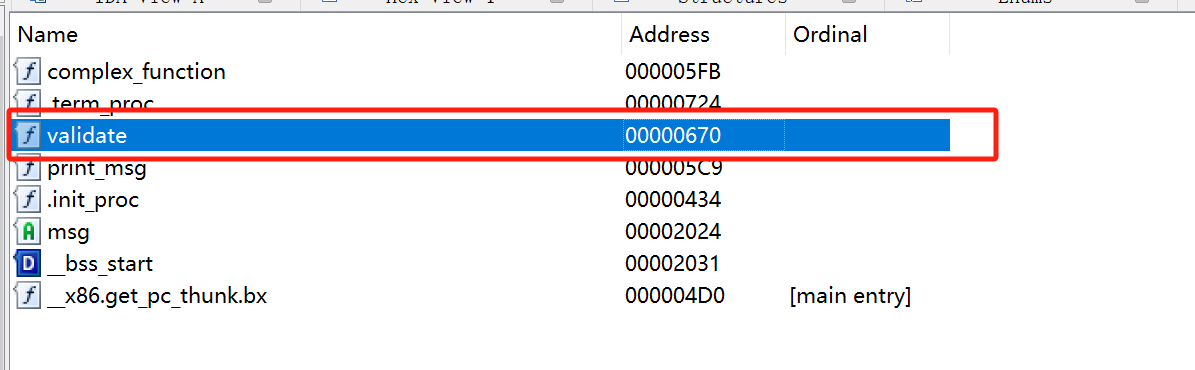

validate开始相对地址为0x670，结束调用地址为0x0000071C

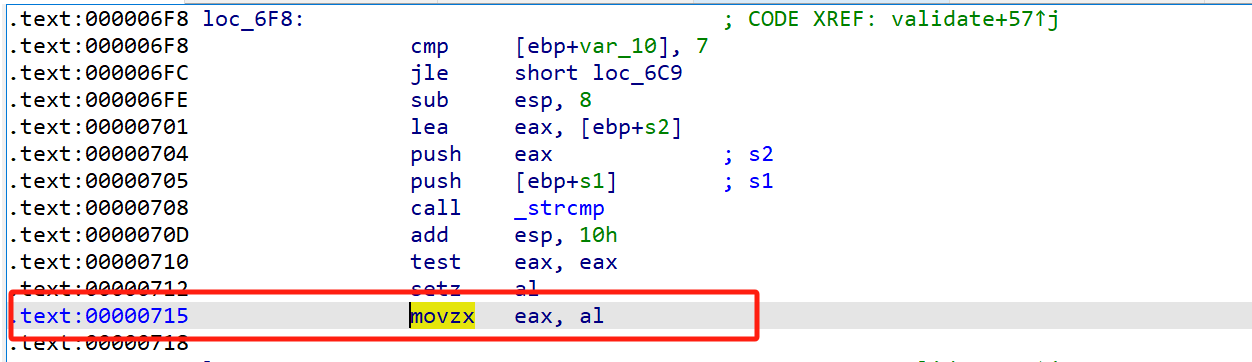

将返回值保存在eax中

代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

import angr
import claripy
import sys

def main(argv):
  base = 0x4000000
  project = angr.Project("./lib14_angr_shared_library.so", load_options={
    'main_opts' : {
      'base_addr' : base
    }
  })
  buffer_pointer = claripy.BVV(0x3000000, 32)
  validate_function_address = base + 0x670
  initial_state = project.factory.call_state(
                    validate_function_address,
                    buffer_pointer,
                    claripy.BVV(8, 32),
                    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                                   angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
                  )
  password = claripy.BVS('password', 8*8)
  initial_state.memory.store(buffer_pointer, password)

  simulation = project.factory.simgr(initial_state)

  check_constraint_address = base + 0x71c
  simulation.explore(find=check_constraint_address)

  if simulation.found:
    solution_state = simulation.found[0]

    solution_state.add_constraints(solution_state.regs.eax == 1)
    solution = solution_state.solver.eval(password,cast_to=bytes).decode()
    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

得到结果为TSDLQKWZ

15_angr_arbitrary_read

1
2
3
4
5
6
7
8
9
10
11
12
13
14
int __cdecl main(int argc, const char **argv, const char **envp)
{
  char v4; // [esp+Ch] [ebp-1Ch] BYREF
  char *s; // [esp+1Ch] [ebp-Ch]

  s = try_again;
  printf("Enter the password: ");
  __isoc99_scanf("%u %20s", &key, &v4);
  if ( key == 2358019 )
    puts(s);
  else
    puts(try_again);
  return 0;
}

代码逻辑是当key等于2358019时输出s，否则输出try_again。而s的初始值为try_again，并且这里的输入存在栈溢出可以对s进行覆盖为”Good Job.”。并且该字符串在0x4f534957地址处。

pwn

1
2
3
4
5
6
7
from pwn import *

p = process("./15_angr_arbitrary_read")
Good_addr =0x4f534957
payload = b'2358019'+b'a'*0x10+p32(Good_addr)
p.sendline(payload)
p.interactive()

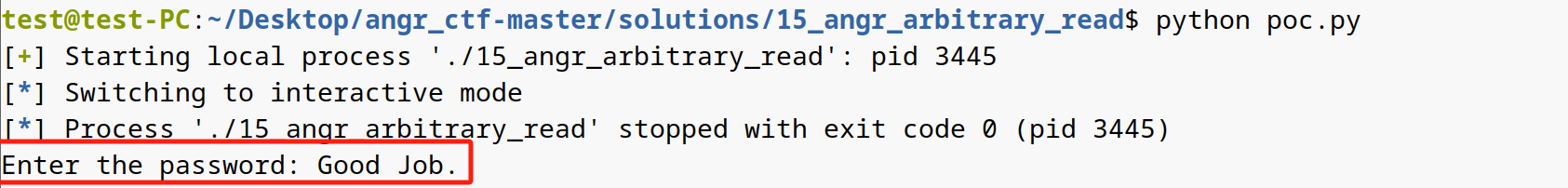

覆盖成功输出

angr

求解步骤如下：

  1. 使用SimProcedur对输入符号化，并且为了避免路径太多造成的超时需设置限制，指定第二个输入为字符
  2. 要想找到目标状态，需要在puts之前停下来，这里也需要设置约束条件，让参数s等于“God Job.”的地址

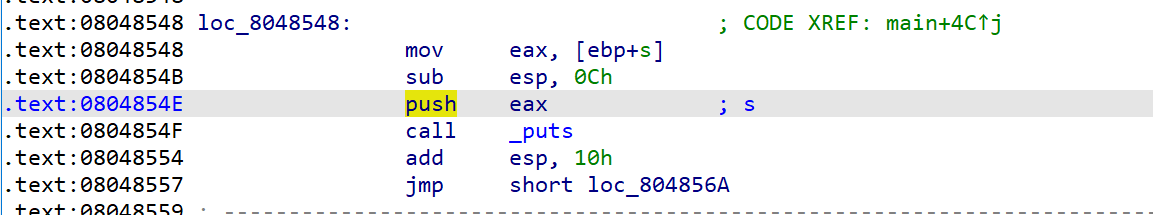

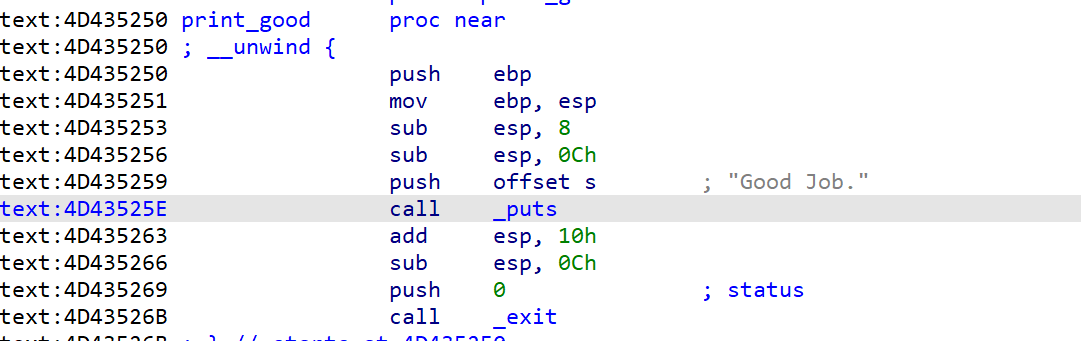

在main函数中，对puts的调用如下

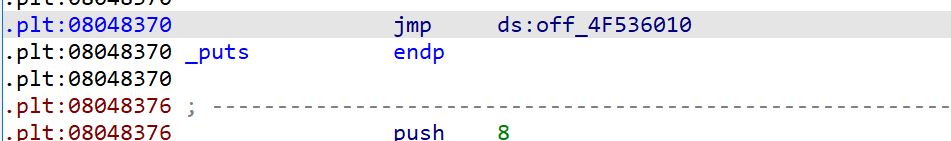

puts()对应的plt地址如下

由于angr是基于一个基本块执行的，这里可以选用0x08048548作为开始地址，但s是保存在堆栈中，此时并未调用puts函数保存堆栈，所以选用0x08048370作为地址，此时的参数地址保存在esp+4

代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

import angr
import claripy
import sys


def main(argv):
    project = angr.Project('./15_angr_arbitrary_read')
    initial_state = project.factory.entry_state(
        add_options={angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                     angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
    )
    class ReplacementScanf(angr.SimProcedure):
        def run(self, format_string, param0, param1):
            scanf0 = claripy.BVS('scanf0', 32)
            scanf1 = claripy.BVS('scanf1', 20 * 8)
            for char in scanf1.chop(bits=8):
                self.state.add_constraints(char >= 'A'.encode(), char <= 'Z'.encode())
            self.state.memory.store(param0, scanf0, endness=project.arch.memory_endness)
            self.state.memory.store(param1, scanf1)
            self.state.globals['solutions'] = (scanf0, scanf1)
    scanf_symbol = '__isoc99_scanf'  # :string
    project.hook_symbol(scanf_symbol, ReplacementScanf())
    def check_puts(state):

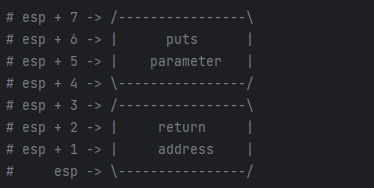

        puts_parameter = state.memory.load(state.regs.esp + 4, 4, endness=project.arch.memory_endness)
        if state.solver.symbolic(puts_parameter):

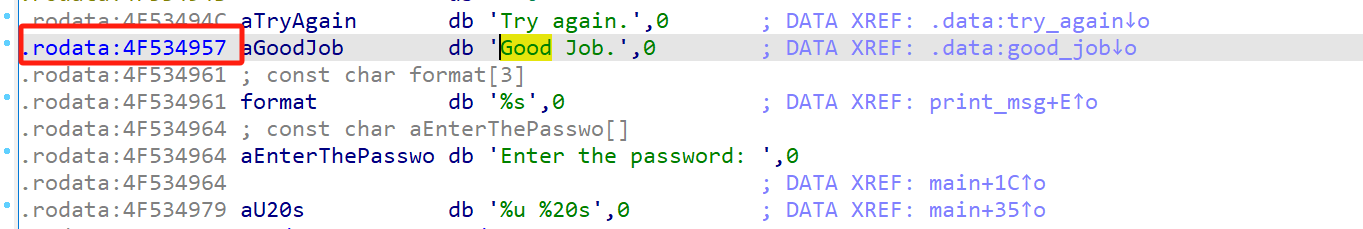

            good_job_string_address = 0x4f534957  # :integer, probably hexadecimal
            is_vulnerable_expression = puts_parameter == good_job_string_address  # :boolean bitvector expression
            if state.satisfiable(extra_constraints=(is_vulnerable_expression,)):
                # Before we return, let's add the constraint to the solver for real,
                # instead of just querying whether the constraint _could_ be added.
                state.add_constraints(is_vulnerable_expression)
                return True
            else:
                return False
        else:  # not state.solver.symbolic(???)
            return False

    simulation = project.factory.simgr(initial_state)

    # In order to determine if we have found a vulnerable call to 'puts',  we need
    # to run the function check_puts (defined above) whenever we reach a 'puts'
    # call. To do this, we will look for the place where the instruction pointer,
    # state.addr, is equal to the beginning of the puts function.
    def is_successful(state):
        # We are looking for puts. Check that the address is at the (very) beginning
        # of the puts function. Warning: while, in theory, you could look for
        # any address in puts, if you execute any instruction that adjusts the stack
        # pointer, the stack diagram above will be incorrect. Therefore, it is
        # recommended that you check for the very beginning of puts.
        # (!)
        puts_address = 0x8048370
        if state.addr == puts_address:
            # Return True if we determine this call to puts is exploitable.
            return check_puts(state)
        else:
            # We have not yet found a call to puts; we should continue!
            return False

    simulation.explore(find=is_successful)

    if simulation.found:
        solution_state = simulation.found[0]

        (scanf0, scanf1) = solution_state.globals['solutions']
        solution = str(solution_state.solver.eval(scanf0)) + ' ' + solution_state.solver.eval(scanf1,
                                                                                              cast_to=bytes).decode()
        print(solution)
    else:
        raise Exception('Could not find the solution')


if __name__ == '__main__':
    main(sys.argv)

得到两个参数2358019 AAAAAAAAAAAAAAAAWISO

16_angr_arbitrary_write

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
int __cdecl main(int argc, const char **argv, const char **envp)
{
  char s[16]; // [esp+Ch] [ebp-1Ch] BYREF
  char *dest; // [esp+1Ch] [ebp-Ch]

  dest = unimportant_buffer;
  memset(s, 0, sizeof(s));
  strncpy(password_buffer, "PASSWORD", 0xCu);
  printf("Enter the password: ");
  __isoc99_scanf("%u %20s", &key, s);
  if ( key == 6712341 )
    strncpy(dest, s, 0x10u);
  else
    strncpy(unimportant_buffer, s, 0x10u);
  if ( !strncmp(password_buffer, "NEDVTNOP", 8u) )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

要满足两个条件key == 6712341和**password_buffer==”NEDVTNOP”**，所以对

strncpy()调用时添加上面两个约束条件，代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77


import angr
import claripy
import sys

def main(argv):

  project = angr.Project('./16_angr_arbitrary_write')


  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  class ReplacementScanf(angr.SimProcedure):
    # Hint: scanf("%u %20s")
    def run(self, format_string, param0, param1):
      # %u
      scanf0 = claripy.BVS('scanf0', 32)

      # %20s
      scanf1 = claripy.BVS('scanf1', 20*8)

      for char in scanf1.chop(bits=8):
        self.state.add_constraints(char >= 48, char <= 96)

      scanf0_address = param0
      self.state.memory.store(scanf0_address, scanf0, endness=project.arch.memory_endness)
      scanf1_address = param1
      self.state.memory.store(scanf1_address, scanf1)

      self.state.globals['solutions'] = (scanf0, scanf1)

  scanf_symbol = '__isoc99_scanf'  # :string
  project.hook_symbol(scanf_symbol, ReplacementScanf())

  def check_strncpy(state):
    strncpy_dest = state.memory.load(state.regs.esp + 4, 4, endness=project.arch.memory_endness)
    strncpy_src = state.memory.load(state.regs.esp + 8, 4, endness=project.arch.memory_endness)
    strncpy_len = state.memory.load(state.regs.esp + 12, 4, endness=project.arch.memory_endness)
    src_contents = state.memory.load(strncpy_src, strncpy_len)
    if state.solver.symbolic(src_contents) and state.solver.symbolic(strncpy_dest):
      password_string = 'NEDVTNOP'.encode() # :string
      buffer_address = 0x4d43523c # :integer, probably in hexadecimal
      does_src_hold_password = src_contents[-1:-64] == password_string
      does_dest_equal_buffer_address = strncpy_dest == buffer_address
      if state.satisfiable(extra_constraints=(does_src_hold_password, does_dest_equal_buffer_address)):
        state.add_constraints(does_src_hold_password, does_dest_equal_buffer_address)
        return True
      else:
        return False
    else: # not state.solver.symbolic(???)
      return False
  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    strncpy_address = 0x8048410
    if state.addr == strncpy_address:
      return check_strncpy(state)
    else:
      return False

  simulation.explore(find=is_successful)
  if simulation.found:
    solution_state = simulation.found[0]

    scanf0, scanf1 = solution_state.globals['solutions']
    solution = str(solution_state.solver.eval(scanf0)) + ' ' + solution_state.solver.eval(scanf1, cast_to=bytes).decode()
    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

6712341 NEDVTNOPP@@@@@@@<RCM

17_angr_arbitrary_jump

1
2
3
4
5
6
7
int __cdecl main(int argc, const char **argv, const char **envp)
{
  printf("Enter the password: ");
  read_input();
  puts("Try again.");
  return 0;
}

其中read_input()就是输入

1
2
3
4
5
6
int read_input()
{
  char v1[43]; // [esp+Dh] [ebp-2Bh] BYREF

  return __isoc99_scanf("%s", v1);
}

按照这个代码逻辑的话，程序只会输出”Try again.”。但__isoc99_scanf()存在栈溢出漏洞，可以覆盖其返回地址为puts()地址，输出”Good Job.”;或者其中还有个函数print_good()，地址为0x4D435250

pwn代码如下

1
2
3
4
5
6
from pwn import *

p = process("./17_angr_arbitrary_jump")
payload = b'a' *0x2F  + p32(0x4D435250)
p.sendline(payload)
p.interactive()

这道题获取输入，使得某个state的eip变成想要的值。意味着让eip变成某个符号量，然后求解这个符号变量。angr对于这种情况，一般会将state放到unconstrained这个stash中,这个stash中的state会被angr默认丢弃以增加效率，而现在我们需要这个stash里面的state。可以在创建SM时保存，就像这样

1
simgr = p.factory.simgr(init_state, save_unconstrained=True)

处于unconstrained中的state，如果它在eip等于目标地址（也就是print_good的地址）时，能够有解（满足state.satisfiable为真），这样的状态就是目标状态了.angr在执行时，每次进入新的路径就会有新的state，为了判断这个state是否符合要求，这次不用explorer自动探索了，我们采用step单步执行，然后获取state进行判断。

代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

import angr
import claripy
import sys

def main(argv):
  project = angr.Project('17_angr_arbitrary_jump')
  initial_state = project.factory.entry_state()

  class SimScanfProcedure(angr.SimProcedure):

    def run(self, fmtstr, input_addr):
      input_bvs = claripy.BVS('input_addr', 200 * 8)
      for chr in input_bvs.chop(bits=8):
        self.state.add_constraints(chr >= '0', chr <= 'z')
      self.state.memory.store(input_addr, input_bvs)
      self.state.globals['input_val'] = input_bvs


  project.hook_symbol('__isoc99_scanf', SimScanfProcedure())

  simulation = project.factory.simgr(
    initial_state,
    save_unconstrained=True,
    stashes={
      'active' : [initial_state],
      'unconstrained' : [],
      'found' : [],
      'not_needed' : []
    }
  )
  def has_found_solution():
    return simulation.found
  def has_unconstrained_to_check():
    return simulation.unconstrained
  def has_active():
    return simulation.active

  while (has_active() or has_unconstrained_to_check()) and (not has_found_solution()):
    for unconstrained_state in simulation.unconstrained:
      simulation.move('unconstrained', 'found')
    simulation.step()

  if simulation.found:
    solution_state = simulation.found[0]
    solution_state.add_constraints(solution_state.regs.eip == 0x4d435250)

    # Solve for the symbolic_input
    symbolic_input = solution_state.globals['input_val']
    solution = solution_state.solver.eval(symbolic_input,cast_to=bytes).decode()
    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

得到**@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@PRCM@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@**

打赏
  • 版权声明： 本博客所有文章除特别声明外，著作权归作者所有。转载请注明出处！
  • Copyrights © 2021-2024 John Doe
  • 访问人数: | 浏览次数:

让我给大家分享喜悦吧！

微信
