【攻防世界】Moblie系列之app3

【攻防世界】Mobile系列之app3

这里下载的文件为ab文件，是由亚行创建的Android备份文件，需要对其进行转换处理成tar文件，这里需要下载一个abe-all.jar包才能进行解压

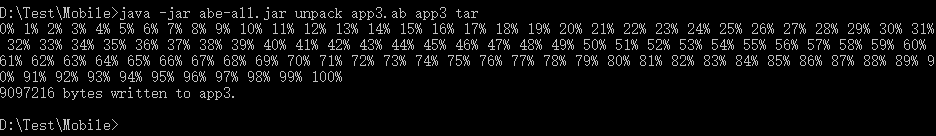

java -jar abe-all.jar unpack app3.ab app3 tar

将上面的tar文件解压后得到一些db文件和apk安装包，运行该安装包

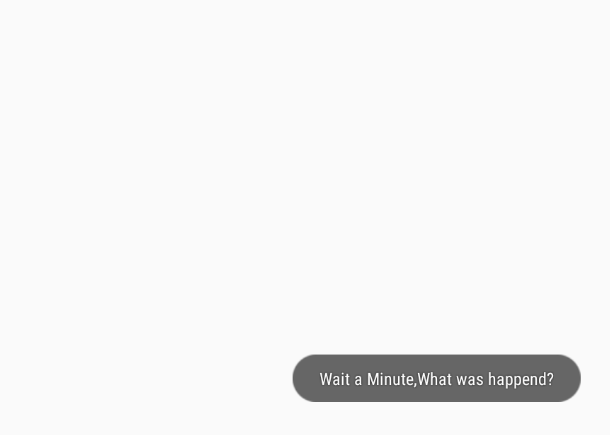

点击登录按钮后会显示字符串并进入空白页面

使用jadx反编译该app，定位MainActivity类查看代码逻辑

public class MainActivity extends AppCompatActivity implements View.OnClickListener {
    private SQLiteDatabase a;
    private a b;
    private Button c;

    /* access modifiers changed from: protected */
    @Override // android.support.v4.app.BaseFragmentActivityGingerbread, android.support.v7.app.AppCompatActivity, android.support.v4.app.FragmentActivity
    public void onCreate(Bundle bundle) {
        super.onCreate(bundle);
        setContentView(R.layout.activity_main);
        this.c = (Button) findViewById(R.id.add_data);
        this.c.setOnClickListener(this);
        SharedPreferences.Editor edit = getSharedPreferences("test", 0).edit();
        edit.putString("Is_Encroty", "1");
        edit.putString("Encryto", "SqlCipher");
        edit.putString("ver_sion", "3_4_0");
        //这里使用SqlCipher3_4_0对数据库文件进行加密
        edit.apply();
        a();
    }

    private void a() {
        SQLiteDatabase.loadLibs(this);
        this.b = new a(this, "Demo.db", null, 1);//创建Demo.db的数据库文件
        ContentValues contentValues = new ContentValues();    //ContentValues存储文本类对象
        contentValues.put("name", "Stranger");
        contentValues.put("password", (Integer) 123456);
        //将"name"和"password"字段数据插入数据库中
        a aVar = new a();
        String a2 = aVar.a(contentValues.getAsString("name"), contentValues.getAsString("password"));
        this.a = this.b.getWritableDatabase(aVar.a(a2 + aVar.b(a2, contentValues.getAsString("password"))).substring(0, 7));//ae56f99作为数据库密码
        this.a.insert("TencentMicrMsg", null, contentValues); //插入TencentMicrMsg数据表中
    }

    public void onClick(View view) {
        if (view == this.c) {
            Intent intent = new Intent();
            intent.putExtra("name", "name");
            intent.putExtra("password", "pass");
            intent.setClass(this, AnotherActivity.class);   //将name和pass传递给AnotherActivity组件
            startActivity(intent);
        }
    }

这里重点分析这两行关键代码

String a2 = aVar.a(contentValues.getAsString("name"), contentValues.getAsString("password"));

this.a = this.b.getWritableDatabase(aVar.a(a2 + aVar.b(a2,contentValues.getAsString("password"))).substring(0, 7));

上面的aVar类为com.example.yaphetshan.tencentwelcome.a

package com.example.yaphetshan.tencentwelcome.a;

/* compiled from: Cipher */
public class a {
    private String a = "yaphetshan";

    public String a(String str, String str2) {
        String substring = str.substring(0, 4);
        return substring + str2.substring(0, 4);
    }//将str的前五个字符和str2的前五个字符进行拼接

    //下面两个函数都调用了b这个类
    public String b(String str, String str2) {
        new b();
        return b.a(str);
    }

    public String a(String str) {
        new b();
        return b.b(str + this.a);
    }
}

接下来我们继续分析b这个类，这个类就是对字符进行加密处理

package com.example.yaphetshan.tencentwelcome.a;

import java.security.MessageDigest;

/* compiled from: SHA1Manager */
public class b {
    public static final String a(String str) {
        char[] cArr = {'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f'};
        try {
            byte[] bytes = str.getBytes(); //将str转换为字节数组
            MessageDigest instance = MessageDigest.getInstance("MD5");
            instance.update(bytes);//对字节数组进行md5处理
            byte[] digest = instance.digest();//返回计算md5后的字符数组
            int length = digest.length;
            char[] cArr2 = new char[(length * 2)];
            int i = 0;
            for (byte b : digest) {
                int i2 = i + 1;
                cArr2[i] = cArr[(b >>> 4) & 15];
                i = i2 + 1;
                cArr2[i2] = cArr[b & 15];
            }
            return new String(cArr2);
        } catch (Exception e) {
            return null;
        }
    }
//b函数使用的是SHA-1摘要算法
    public static final String b(String str) {
        char[] cArr = {'0', '1', '2', '3', '4', '5', '6', '7', '8', '9', 'a', 'b', 'c', 'd', 'e', 'f'};
        try {
            byte[] bytes = str.getBytes();
            MessageDigest instance = MessageDigest.getInstance("SHA-1");
            instance.update(bytes);
            byte[] digest = instance.digest();
            int length = digest.length;
            char[] cArr2 = new char[(length * 2)];
            int i = 0;
            for (byte b : digest) {
                int i2 = i + 1;
                cArr2[i] = cArr[(b >>> 4) & 15];
                i = i2 + 1;
                cArr2[i2] = cArr[b & 15];
            }
            return new String(cArr2);
        } catch (Exception e) {
            return null;
        }
    }
}

逆向还原得到写入的解密字符串，代码如下

public class app3 {
    public static void main(String[] args)
    {
        a str = new a();
        String str1 = str.a("Stranger","123456");
        String str2 = str.a((str1+str.b(str1,"123456"))).substring(0,7);
        System.out.println(str2);
    }


}

计算出如下密码字符串

ae56f99

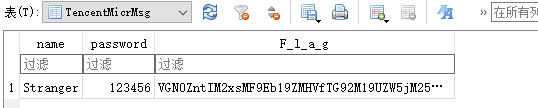

程序接下来使用SqlCipher对数据库文件进行加密处理，这里使用工具查看经过SQLite处理后的数据库文件Encryto.db,使用上面的密码打开数据库，可以看到里面存储的字段，这里有个Flag字段**”VGN0ZntIM2xsMF9Eb19ZMHVfTG92M19UZW5jM250IX0=”**

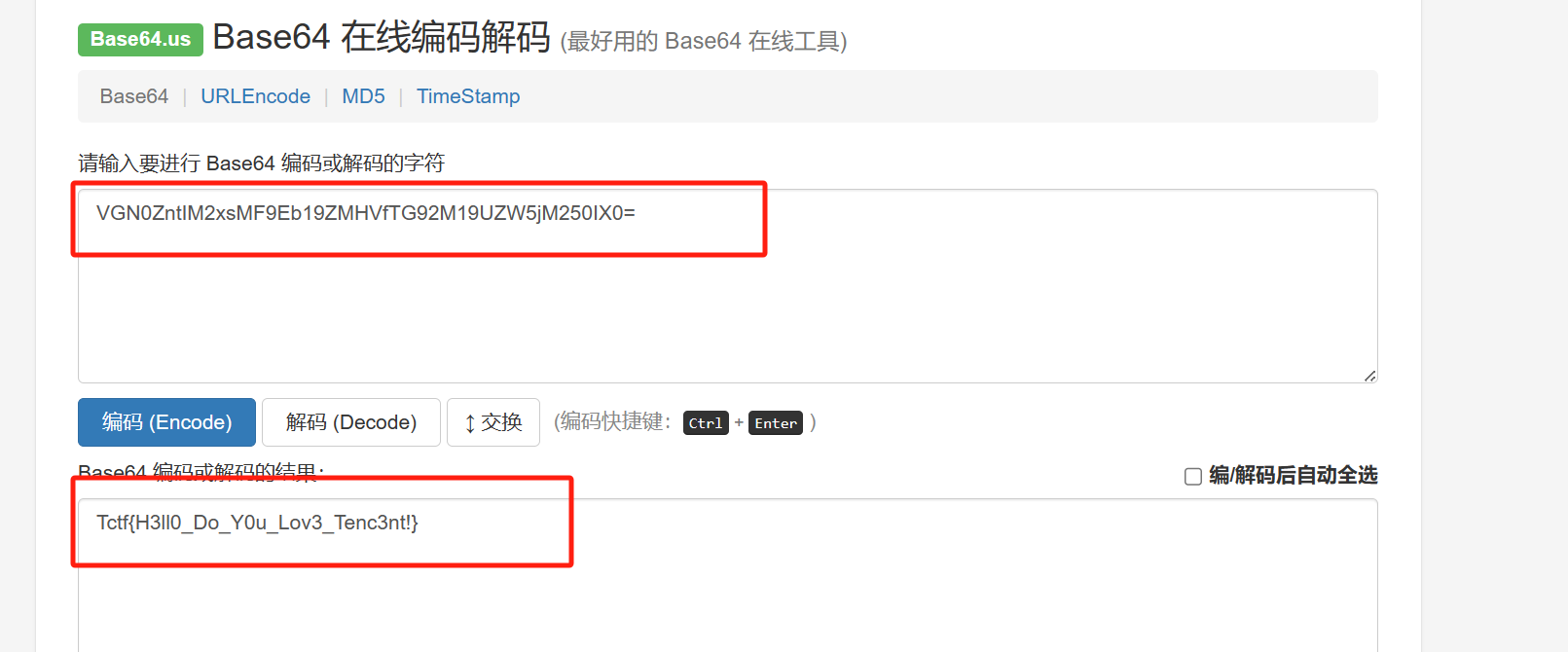

这里的Flag字符串推测进行了Base64编码，对其进行解码处理得到原始字符串Tctf{H3ll0_Do_Y0u_Lov3_Tenc3nt!}
